Precision Pinion Depth Gauge for Accurate Measurements
Get precise measurements with a top-rated pinion depth gauge. It's perfect for mechanics and engineers.
Welcome to Mechanicaddicts. As an Amazon Associate, we earn from qualifying purchases (at no cost to you) from links found within these pages if you choose to buy something. Amazon and the Amazon logo are trademarks of Amazon.com, Inc. or its affiliates.
A pinion depth gauge is a precision tool used to measure the depth of a gear's teeth in relation to its centerline. It is commonly used in automotive and mechanical applications, where accurate measurements are crucial for the proper functioning of gears.
How Mechanicaddicts Chooses the Pinion Depth Gauge
Discover the best option for a Pinion Depth Gauge with Mechanicaddicts. Our expert reviewers have thoroughly researched various products to bring you the most reliable and efficient options.
Whether you're a professional mechanic or a DIY enthusiast, this article will help you make an informed decision about your next Pinion Depth Gauge purchase.
Why We Like This Gauge

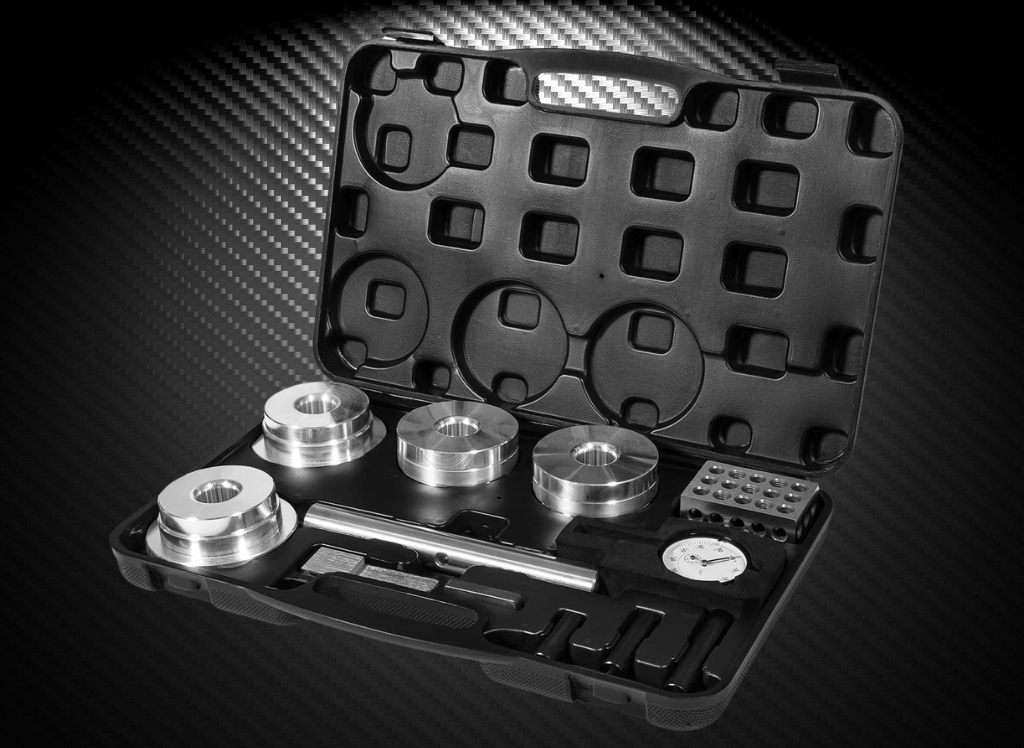

The Hihitomorrow Differential Pinion Depth Gauge is a high-quality tool kit designed to set pinion depth in various automotive differentials accurately. Whether you're working with General Motors, Ford, or Chrysler vehicles, this deluxe pinion depth checker is compatible with most rear ends and axles.
It includes one travel dial indicator, three extensions with calibration tubes, two pairs of hubs with multiple diameters, two target plates, and one precision ground cross shaft—all made from sturdy and durable materials such as aluminum alloy, steel, and magnets.
This pinion depth checker kit provides a reliable and precise method for achieving the perfect pinion depth, making it a practical alternative to the T&D Machine Products 11001 Deluxe Pinion Depth Checker. Before use, carefully clean all parts to ensure accurate calibration.
Upgrade your tool collection with the Hihitomorrow Differential Pinion Depth Gauge – the go-to solution for setting pinion depth with ease and accuracy. Add it to your cart today! So, it can be said that this tool is essential for any automotive professional or DIY enthusiast looking to achieve optimal performance in their differentials.
Key Benefits:
- Compatibility: It is designed to work with a wide range of differentials, including GM, Ford, Chrysler, and most Dana axles.
- Comprehensive Kit: This kit includes a travel dial indicator, calibration tubes, extensions, hubs with multiple diameters, target plates, and a precision ground cross shaft.
- Durable Materials: Made from high-quality aluminum alloy, steel, and magnets for long-lasting use.
- Accuracy: Provides a precise and reliable method for setting pinion depth, ensuring optimal performance.
- Professional-Grade: It is suitable for both professional mechanics and DIY enthusiasts, making it an essential tool for any workshop or garage.
- Ease of Use: Quick and easy to set up and use, ensuring efficient and effective operation.
Why We Like This Gauge

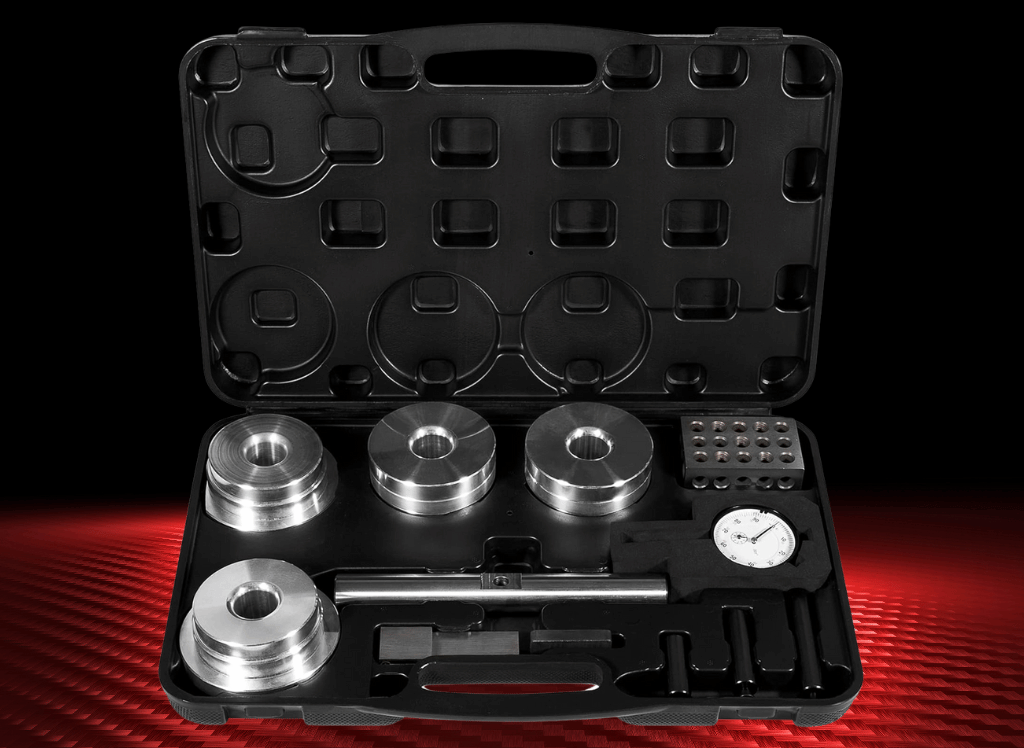

The V-Sek Differential Pinion Depth Gauge Tool is a high-quality and versatile tool designed for precision measurement in automotive differentials. It is compatible with various differential models, such as GM, Ford, Dana, Chrysler, and AMC, and is perfect for any mechanic or car enthusiast looking for an accurate method to set pinion depth.
Crafted from durable aluminum alloy and steel materials, this tool boasts high precision and longevity. Its corrosion and wear resistance ensures it can withstand rigorous use over time. Each kit includes a 1" travel dial indicator, three extensions with calibration tubes, two pairs of hubs with three different diameters, two target plates, and a precision ground cross shaft – all neatly organized in a sturdy carrying case with foam for added protection.
As the pinion head is a crucial part of any differential system, this tool provides an accurate measurement to ensure optimal performance. Say goodbye to manual measurements and potential errors with this easy-to-use gauge tool that guarantees precise and reliable results every time. Trust in V-Sek for your automotive measurement needs.
Key Benefits:
- Versatility: It is compatible with a wide range of differentials, including those of This kit includes all necessary components: GM, Ford, Dana, Chrysler, and AMC models.
- High Precision: Provides an accurate method for setting pinion depth, ensuring optimal performance.
- Durability: Made from high-standard aluminum alloy and steel for longevity and resistance to wear and corrosion.
- Comprehensive Kit: This kit includes all necessary components, such as a 1" travel dial indicator, calibration tubes, hubs, target plates, and a precision ground cross shaft.
- Convenient Carrying Case: It has a durable carrying case and foam inserts for organized storage and easy transportation.
- Accurate Results: Eliminates manual measurement errors, offering reliable and precise results every time.
Why We Like This Gauge

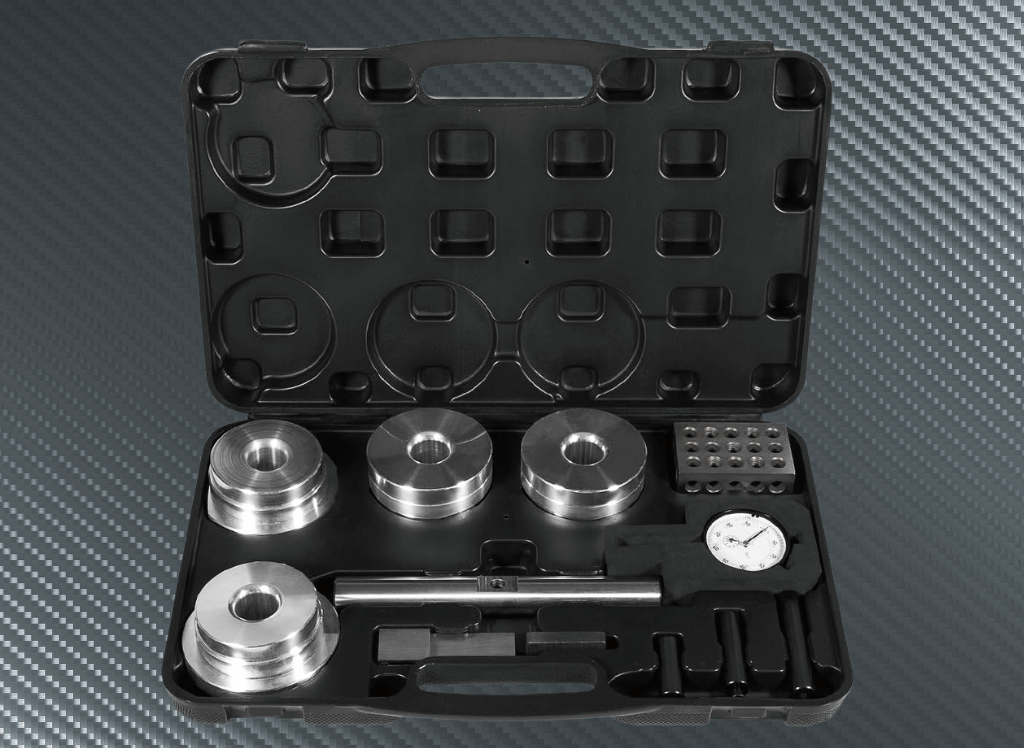

The Besttruck Differential Pinion Depth Gauge is a versatile and essential tool for any mechanic or automotive enthusiast. This gauge is designed to work with various domestic differentials, including popular models such as GM, Ford, Dana, and Chrysler. Whether you are working on a 10-bolt or an 8.875-inch differential, this tool has you covered.
The powerful functions of their pinion depth checker kit make it an accurate method for setting pinion depth in various automotive differentials. It meets or even exceeds OEM specifications, ensuring precise measurements and saving both time and energy during installation. We highly recommend using this tool following the manufacturer's instructions for optimal results.
Crafted from premium materials such as aluminum alloy and stainless steel, this pinion depth gauge is built to last. The advanced CNC machining process and high-grade hardened alloy ensure durability, while the hard-coated crystal dial face prevents scratches and eliminates the risk of rusting. This tool guarantees a long service life with its high precision and hardness.
This package includes all necessary components for efficient measurement, including a travel dial indicator, two pairs of hubs with three diameters each, target plates, extensions with calibration tubes, a precision ground cross shaft, and a convenient carrying case for easy transportation.
Key Benefits:
- Versatility: Compatible with various domestic differentials, including models from GM, Ford, Dana, and Chrysler.
- Precision: Meets or exceeds OEM specifications for accurate pinion depth measurements per manufacturer.
- Durability: Made from premium materials such as aluminum alloy and stainless steel, ensuring a long service life.
- Advanced Features: It is equipped with high-grade hardened alloy components and a hard-coated crystal dial face to prevent scratches and rust.
- Comprehensive Kit: This kit includes all necessary components for efficient measurement and installation, along with a convenient carrying case for easy transportation.
Frequently Asked Questions about Pinion Depth Gauges
What Is a Pinion Depth Gauge Tool?
In automotive and mechanical engineering, a pinion depth gauge measures the distance between the pinion gear and its mounting surface on a differential gear assembly. This measurement helps determine the correct placement of the gears for optimal performance.
Why Is It Essential To Use a Pinion Depth Gauge To Set the Pinion Head?
Proper placement of the pinion gear is crucial for ensuring smooth operation and longevity of the differential gear assembly. Incorrect placement can lead to premature wear and damage, resulting in costly repairs. A pinion depth gauge helps to avoid such issues.
How Do I Use a Pinion Depth Gauge?
First, remove the differential cover and any debris inside. Then, use the gauge to place the pinion gear in its proper position and measure the distance between it and the mounting surface.
Adjust the shims until the desired measurement is achieved. Finally, the differential is reassembled with the correct positioning of all components.
Is a Pinion Depth Gauge an Accurate Method To Set Pinion Depth?
A pinion depth gauge is a reliable and precise tool for setting pinion depth. It eliminates potential errors with manual measurements and provides accurate results every time.
Final Thoughts About the Pinion Depth Gauge
In conclusion, the pinion depth gauge is essential for mechanics and auto enthusiasts alike. Its precision and accuracy make it a valuable instrument in setting up proper gear meshing and ensuring smooth operation of a vehicle's differential.
From its various types to its usage and measurement methods, we have covered everything you need to know about pinion depth gauges. We hope this blog post has given you a comprehensive understanding of this critical tool and its role in maintaining your vehicle's performance.
Thank you for reading!
