Outside micrometers, also known as external micrometers, are precision measuring tools used to measure the outside diameter of objects with high accuracy. They consist of a C-shaped frame, anvil, and spindle that move to each other to capture proper measurements.
While a single 6-inch caliper can cover a wide range of measurements, a six-piece set of micrometers is necessary to cover the same range, illustrating micrometers' limitations in measurement capacity. These tools are commonly used for quality control in various industries, such as manufacturing, engineering, and metalworking.
How Mechanicaddicts Chooses the Outside Micrometer
Choosing the proper outside micrometer can be daunting, with so many available options. As a mechanic, precision, and accuracy are crucial for your work, making investing in a high-quality micrometer essential. This is where Mechanicaddicts comes in to help you make an informed decision.
Why We Like This Outside Micrometer

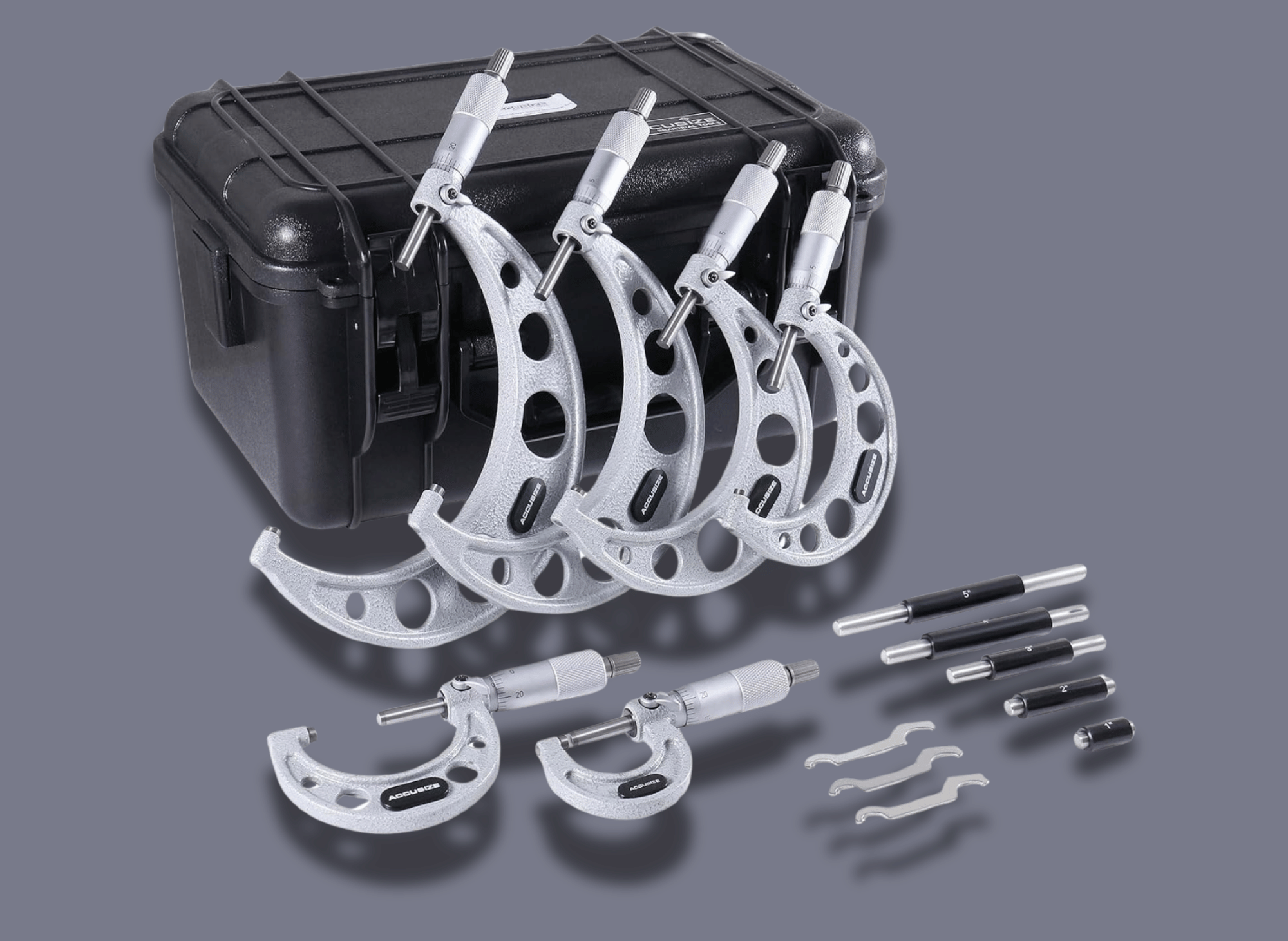

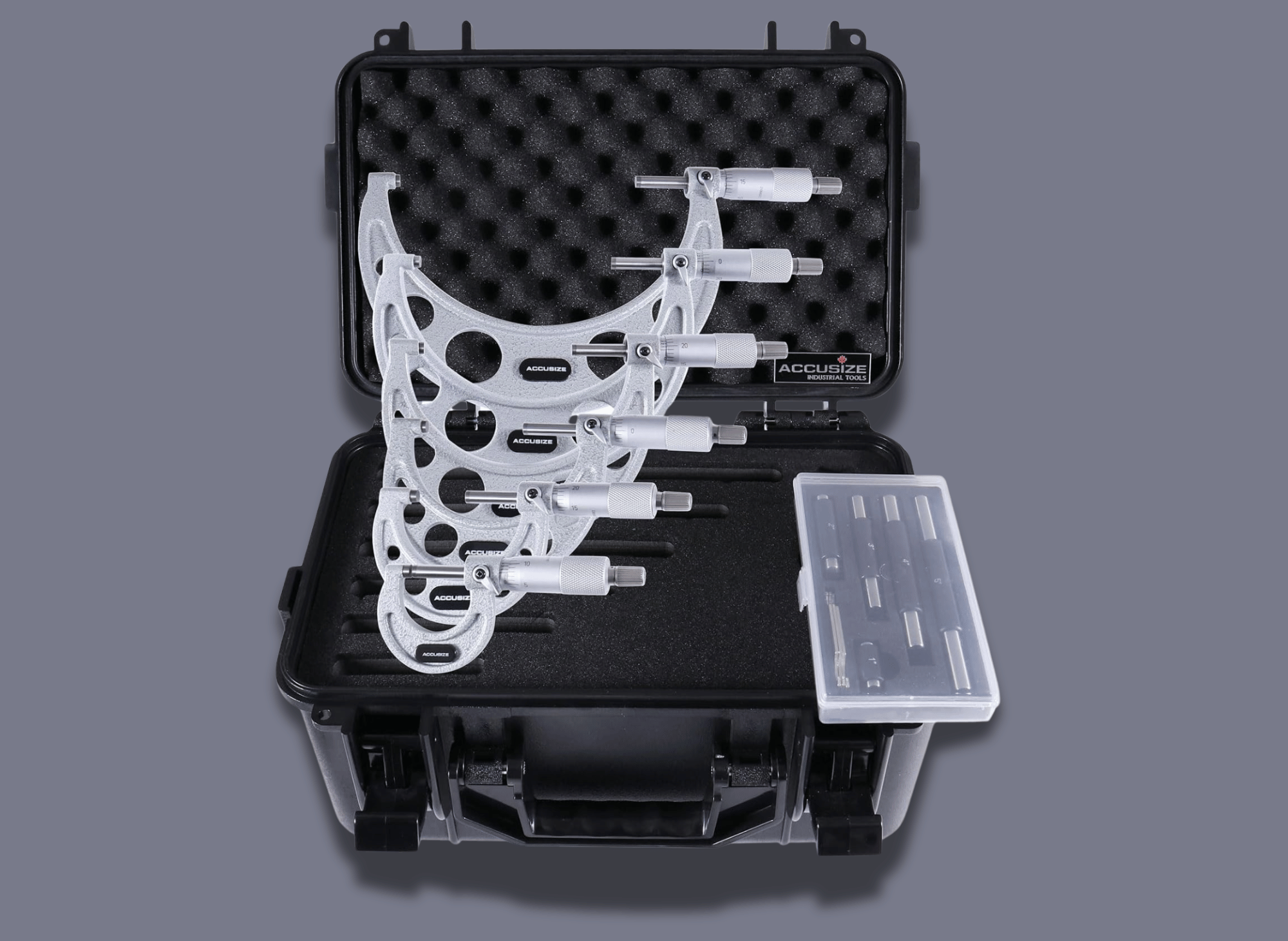

The Accusize Industrial Tools 0-6 Inch by 0.0001’’ Ultra-Precision Outside Micrometer Set is a comprehensive and reliable tool for precise measurements in industrial settings. This set includes six micrometers with a measuring range of 0 - 1’’, 1 - 2’’, 2 - 3’’, 3 - 4’’, 4 - 5’’, and 5 - 6’’ with vernier graduations of 0.0001’’. With a hardened ground spindle and super-hard carbide tips, these micrometers offer exceptional accuracy and longevity.
Designed with a Mitutoyo-style frame, these micrometers feature a ratchet handle and lock nut for precise force application and secure locking, ensuring reliable measurements every time. The 2” and larger micrometers also come with standards for added convenience.
This set is ideal for high-precision tasks, providing a resolution of 0.0001”(inch) or 0.01mm(metric). The thorough inspection processes utilize specific calibration systems capable of measuring in millimeters (mm), ensuring maximum accuracy and reliability in measurement. In addition to its functional design, the solid casting frame with a powder-coated finish provides durability in demanding industrial environments.
Key Features:
- Ultra-Precision Measurement: Offers a range of 0-6 inches with vernier graduations of 0.0001’’ for high-accuracy tasks.
- Durable Construction: Built with a hardened ground spindle and carbide anvil for longevity and reliability.
- Mitutoyo Style Frame: Ensures solid performance with a powder-coated finish, suitable for demanding environments.
- Ratchet Handle & Lock Nut: Provides precise force application and secure locking for dependable measurements.

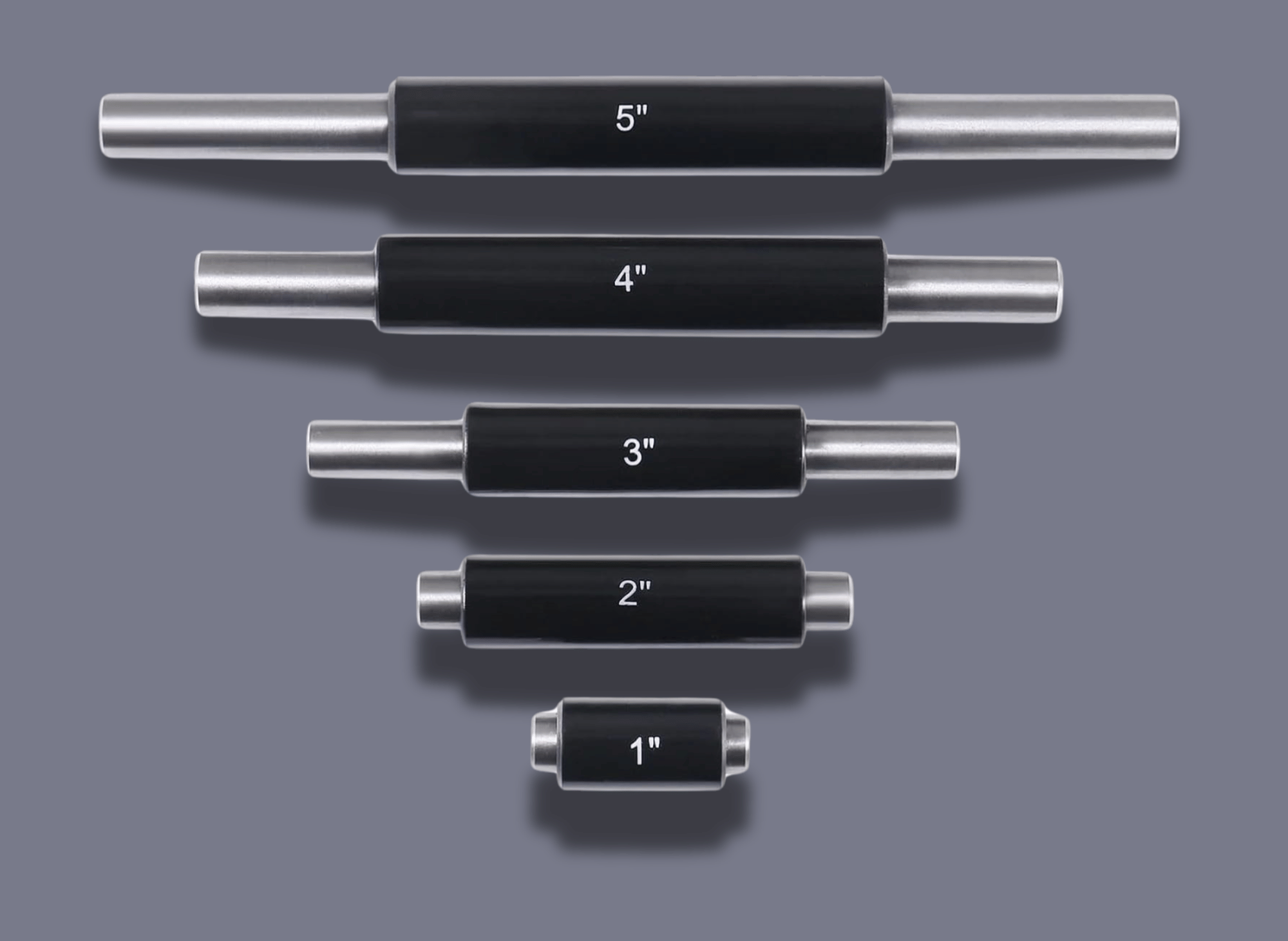

- Comprehensive Set: This set includes six micrometers (0-1”, 1-2”, 2-3”, 3-4”, 4-5”, 5-6”), calibration standards, and wrenches, all neatly packaged in a padded wooden case.
- Convenience: 2” and larger micrometers are furnished with standards for enhanced usability.
Why We Like This Outside Micrometer

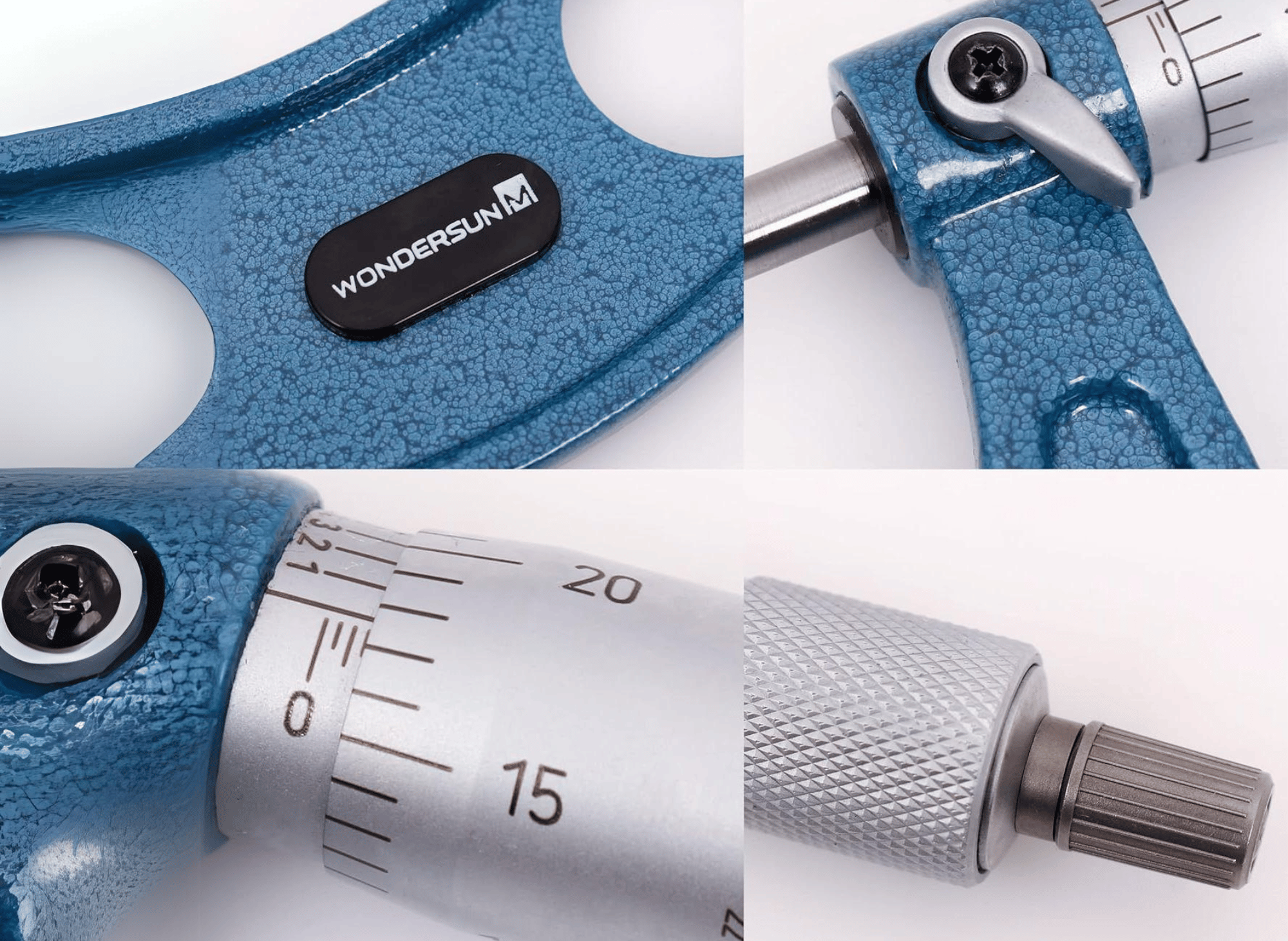

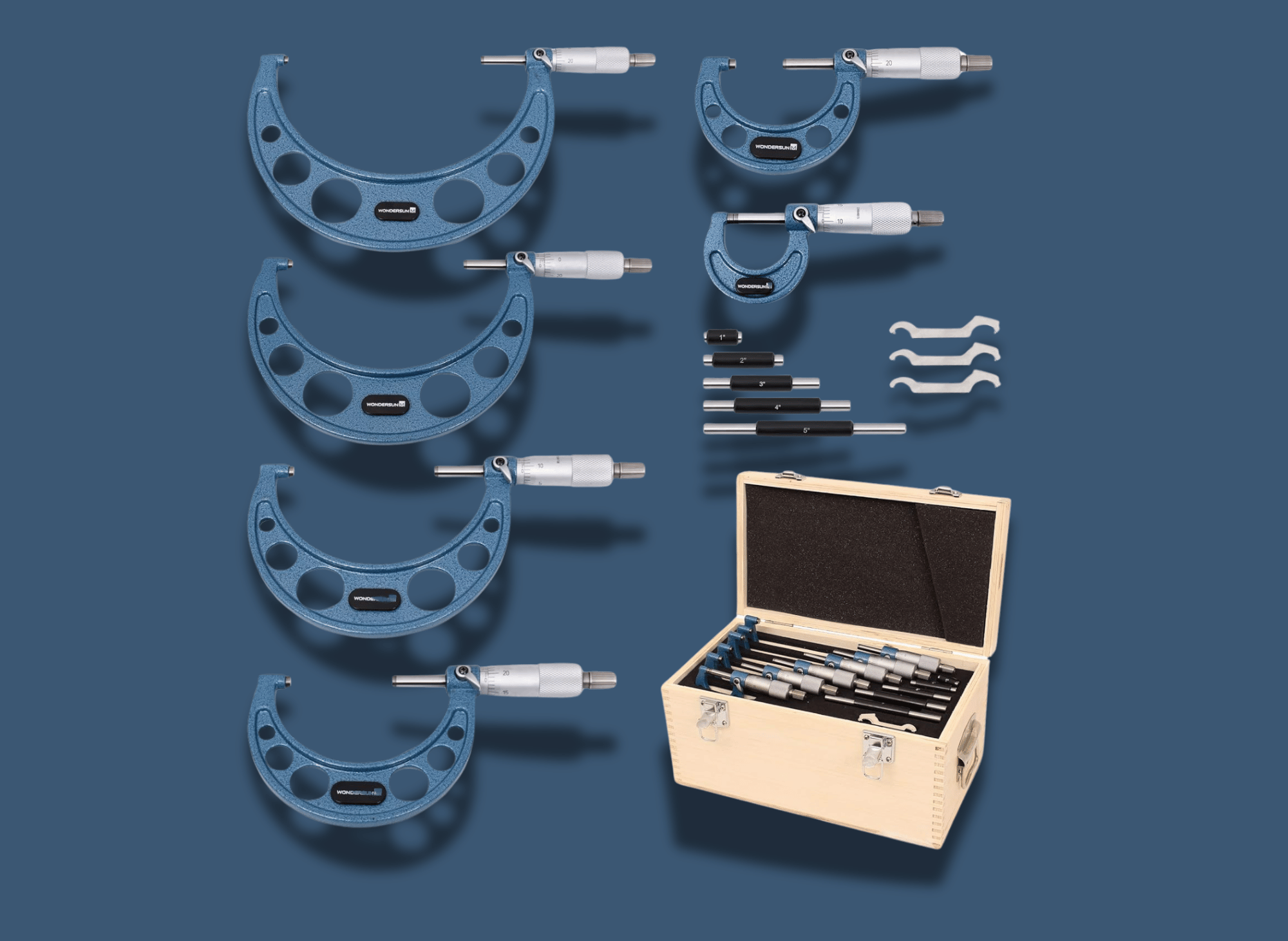

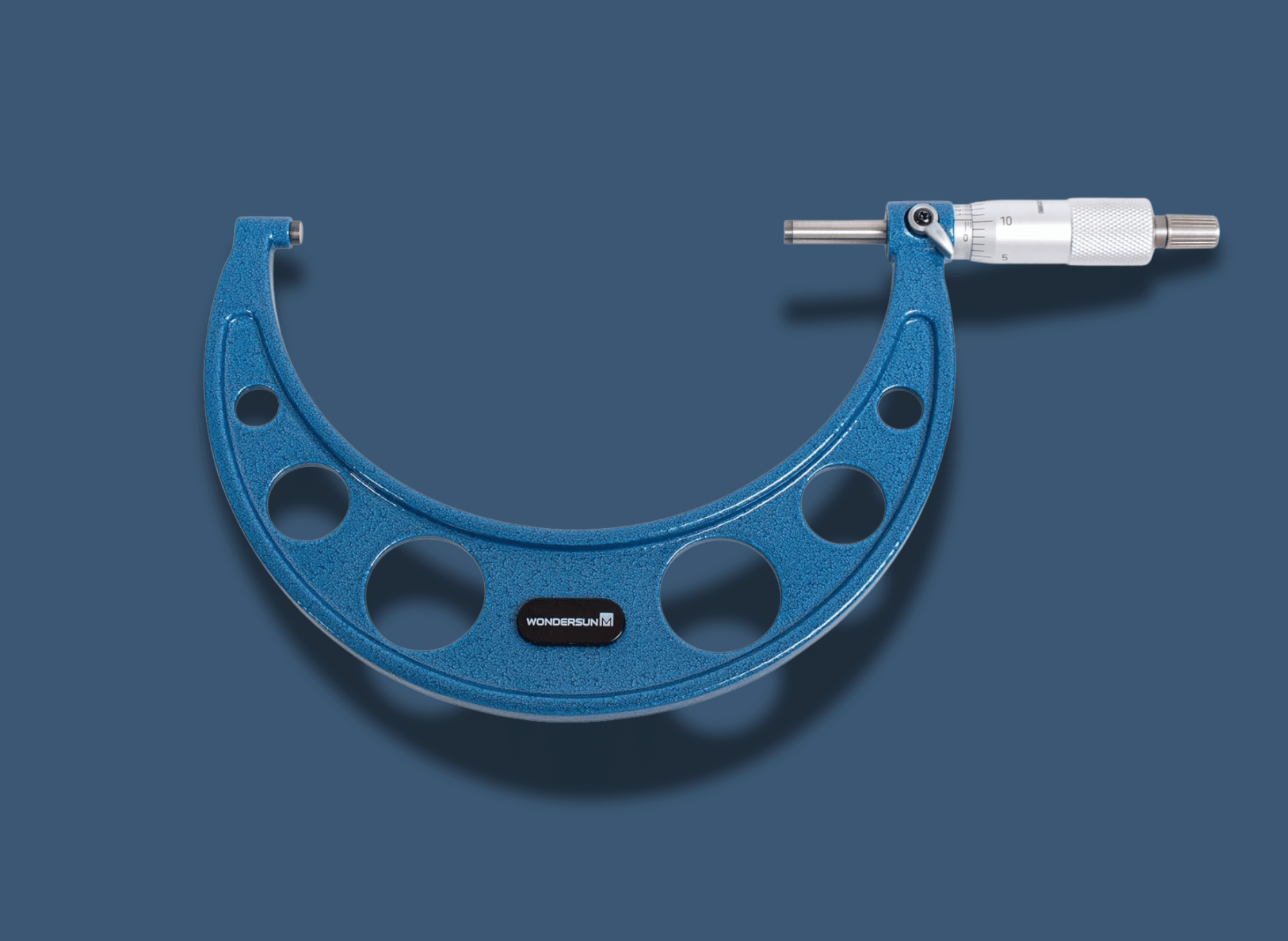

The Wondersunm 6 PCs Outside Micrometer Set is designed and manufactured by the trusted brand WONDERSUNM. Made from high-quality carbide steel, this set offers extreme accuracy with a measurement precision of 0.0001 inch.
Whether you need to measure small or large objects, this set includes various measuring options and accessories to suit your needs. Examples of advanced machinery utilized in the manufacturing process of this micrometer set include CNC grinding machines and laser calibration systems, ensuring state-of-the-art precision and quality. The satin chrome finish on the thimble and sleeve adds durability and helps reduce glare for better readability.
With its fixed handle and ratchet thimble, precise pressure can be applied for accurate readings every time. Upgrade your measurement tools with the reliable and professional Wondersunm 6 PCs Outside Micrometer Set.
Key Features:
- High Accuracy: Achieves precision measurements of 0.0001 inch.
- Versatile Range: Includes various measuring options and accessories for diverse applications.
- Durable Construction: Made from high-quality carbide steel with a satin chrome finish for rust resistance and reduced glare.
- User-Friendly Design: Features a fixed handle and ratchet thimble for consistent pressure application and accurate readings.
- Ideal for Professionals and Hobbyists: Perfect for anyone requiring exact and repeatable measurements in various settings.
Why We Like This Outside Micrometer

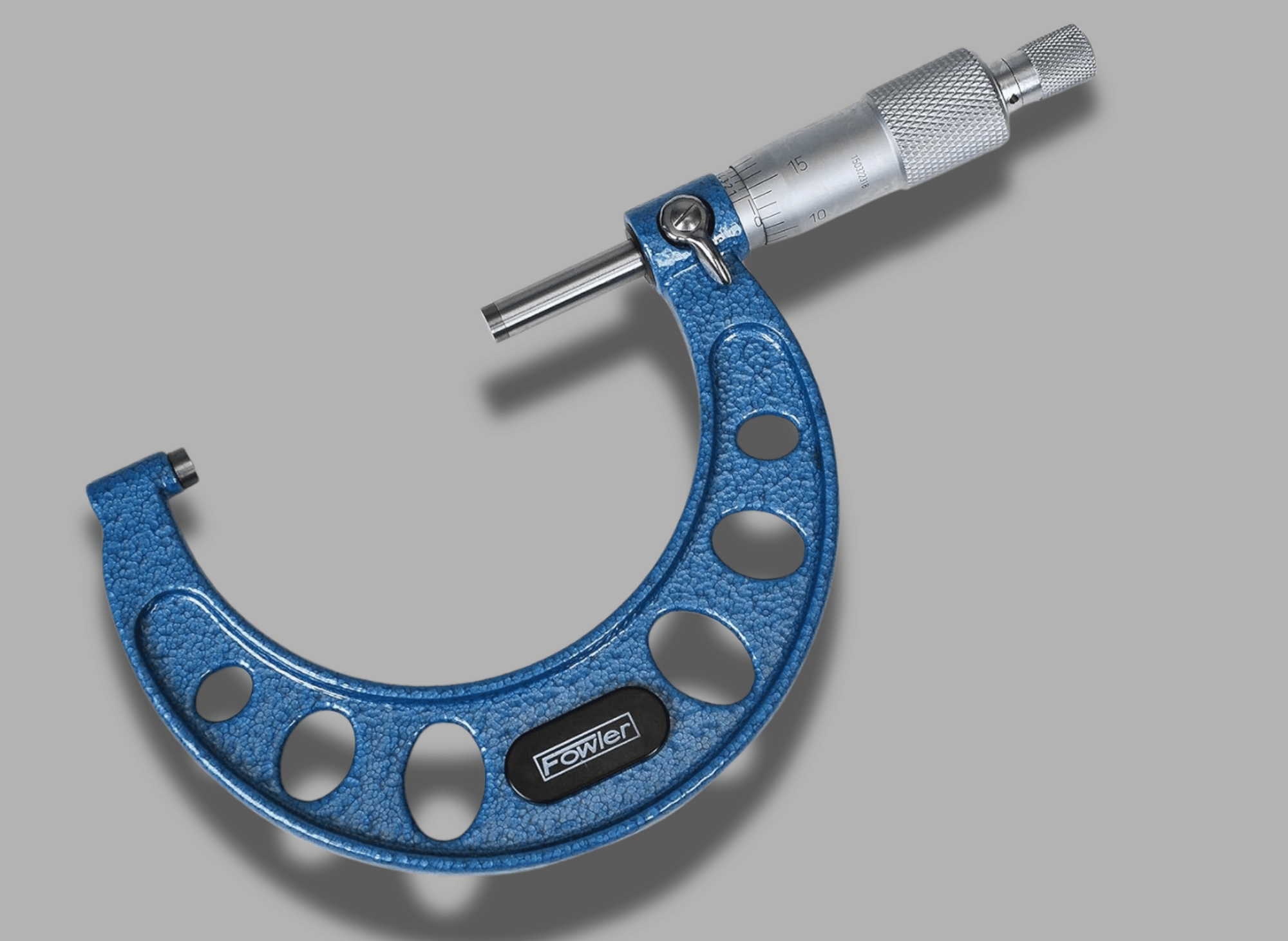

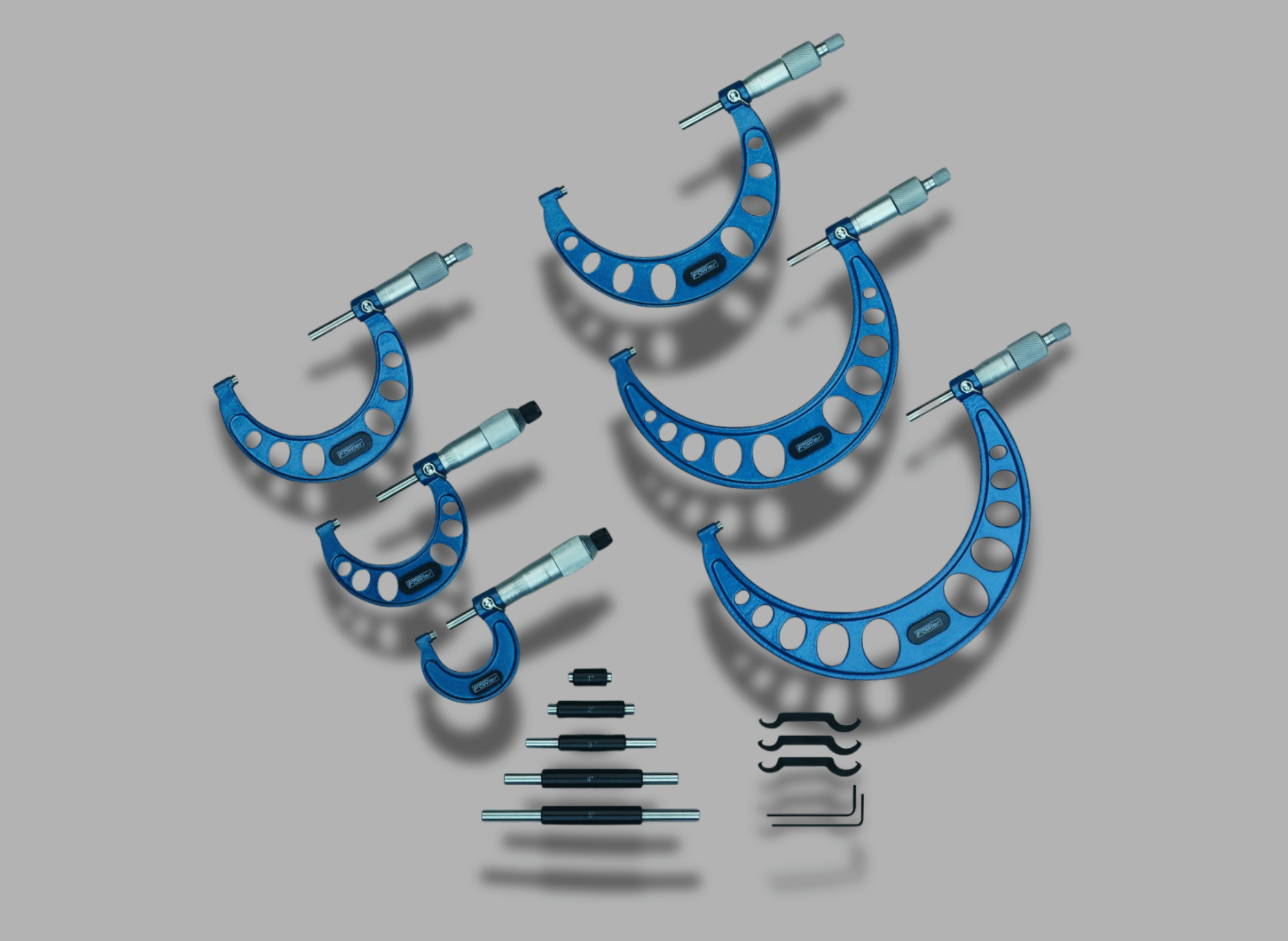

The Fowler 52-215-006-1 Outside Micrometer Set is a high-quality precision measuring tool for reliable and accurate measurements. This set comes with six outside-inch micrometers, ranging from 0 to 6 inches, making it versatile and perfect for various measurements.
Each micrometer in this set features a satin chrome finish on the thimble and sleeve, reducing the risk of rust and glare, thus extending the product’s lifespan. The vernier scale also has a hammertone blue-baked finish, adding durability to the micrometers.
Designed for ease of use, this micrometer set has quick and easy zero adjustments on the sleeve and a positive lever locking clamp. The friction thimble, found on 1” and 2” mics, and ratchet thimble on 3” to 6” mics, ensure constant force for consistent repeatability between different users. Additionally, a half-moon adjusting wrench is used to make necessary adjustments to the spindle for accurate measurements.
Key Features:
- Precision Measurement: Designed for accuracy with a measurement accuracy of +/-0.0001 inches.
- Versatile Range: Includes six micrometers covering sizes from 0 to 6 inches.
- Durable Construction: Satin chrome finish on the thimble and sleeve for rust resistance and reduced glare.
- User-Friendly Design: Quick zero adjustment and positive lever locking clamp for easy operation.
- Consistent Force Application: A friction thimble for 1” and 2” micrometers and a ratchet thimble for 3” to 6” ensures repeatable results.
- Exceptional Flatness and Parallelism: 0.00003” flatness and 0.00005” parallelism ensure superior measurement accuracy.

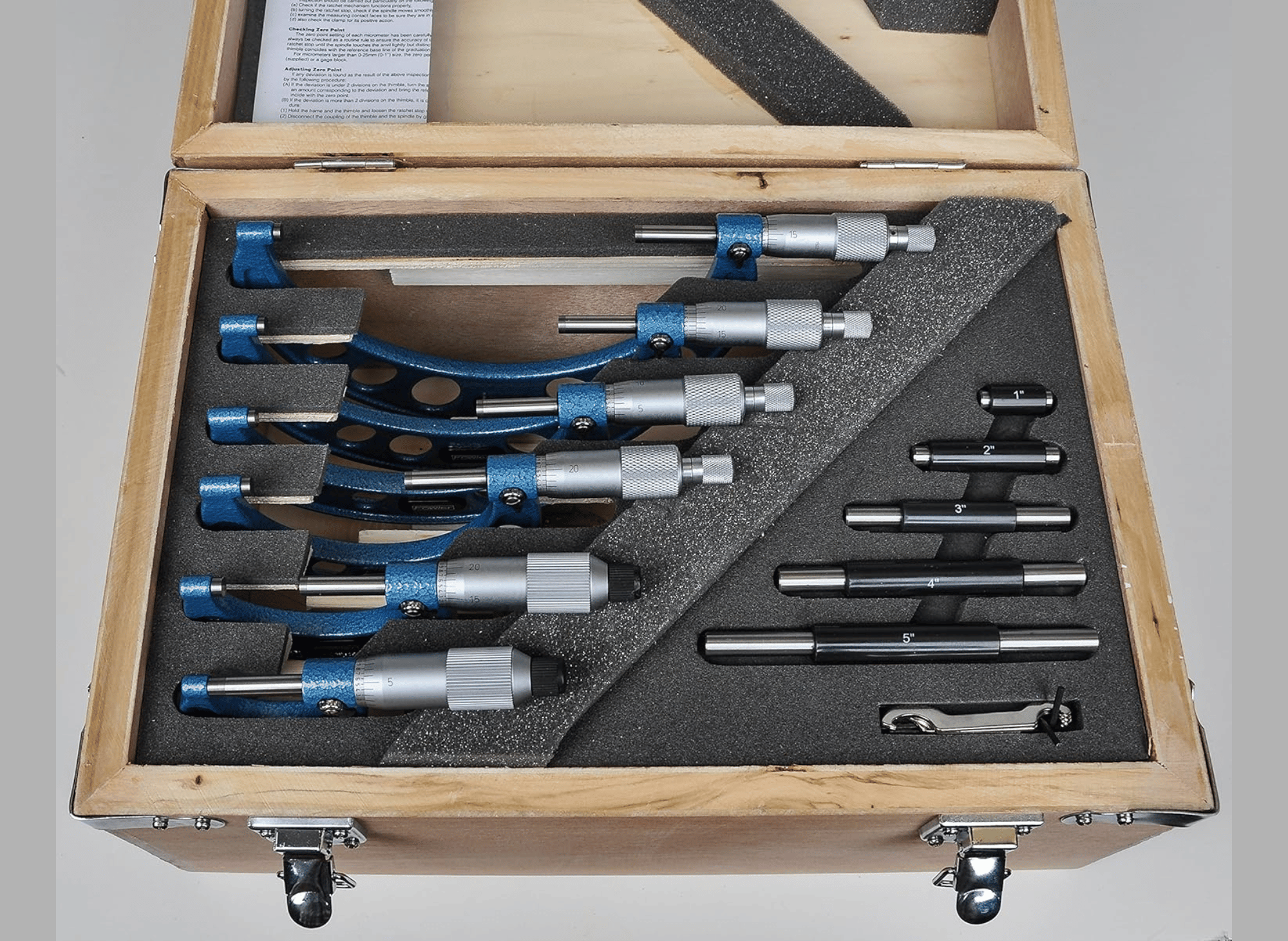

- Complete Set: Includes adjustment wrenches and a wooden fitted case for secure storage and easy transport.
Why We Like This Outside Micrometer

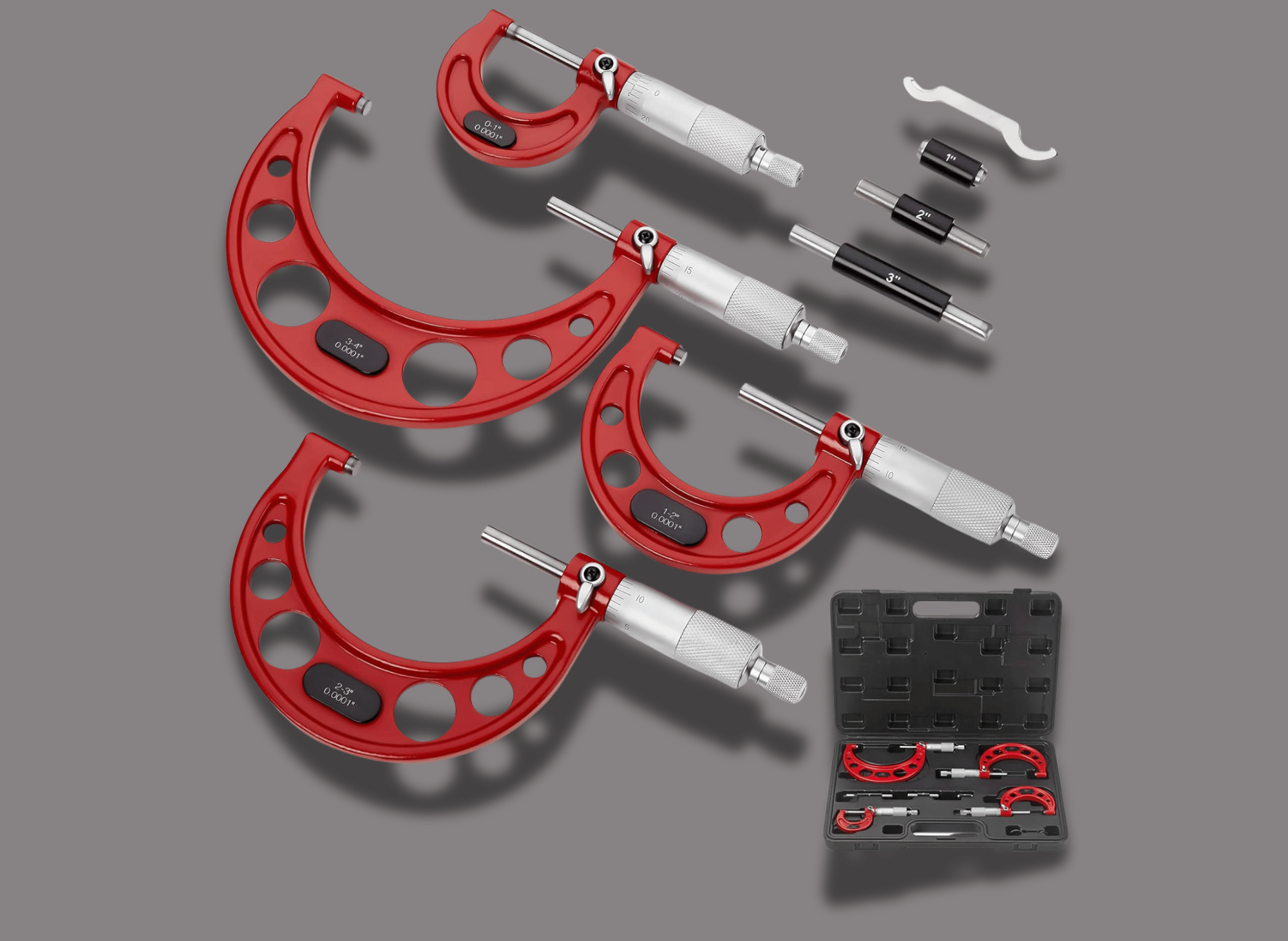

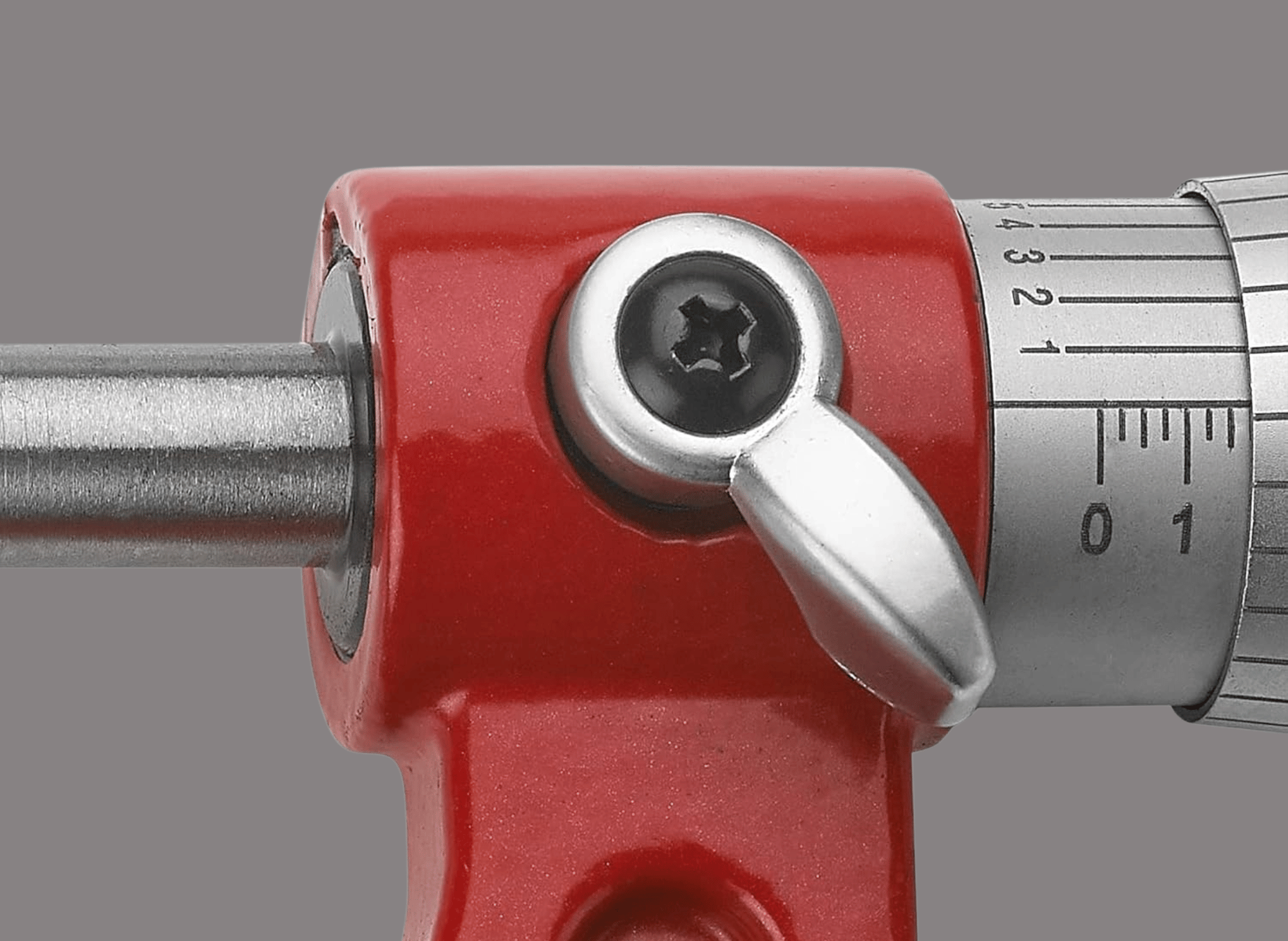

The Sandor Premium Outside Micrometer Set is a high-precision measuring tool designed to provide accurate and precise measurements every time. This set includes four carbide outside micrometers, calibration standards, and adjusting wrenches, all neatly packaged in a padded hard shell case for easy storage and transportation.

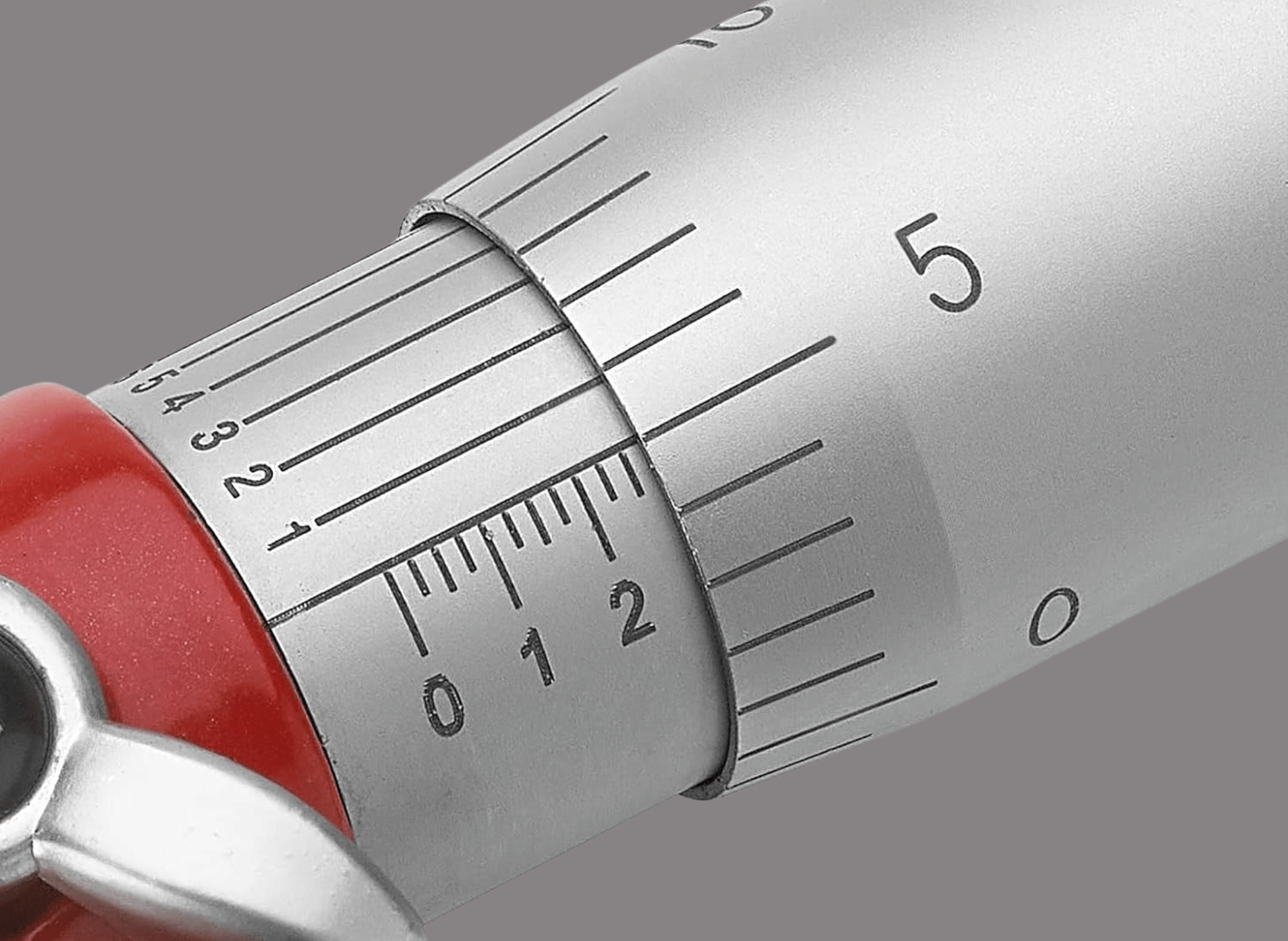

With microfine graduations of 0.0001” and an accuracy of ±0.0001”, this set ensures that your measurements are as precise as possible. When the micrometer is at its minimum reading, the horizontal line on the sleeve should align with the '0' on the thimble, ensuring accurate calibration.
The metal ratchet-stop thimble with a speeder knob on each micrometer allows for quick opening and closing, reducing the time it takes to take measurements. Additionally, the constant-force mechanism prevents over-tightening by stopping the micrometer’s spindle once it contacts the measured object’s surface.
Perfect for DIY enthusiasts, hobbyists, CNC machinists, fabricators, automotive mechanics, and inspection tools, the Sandor Premium Outside Micrometer Set has many uses. It can accurately measure outside dimensions (OD) of raw materials, whole workpieces, features in production, and more in various metalworking.
Key Features:
- High-Precision Measuring Range: 0-4 inches covering various applications
- Microfine Graduations: 0.0001” for exceptional accuracy in measurements
- Durable Construction: Made with carbide tips for long-lasting performance
- Included Accessories: Comes with calibration standards and adjusting wrenches for convenience
- User-Friendly Design: Friction/ratchet-stop thimble with speeder knob for quick adjustments
- Exclusive Aesthetic: Unique red color finish with satin chrome thimble, resistant to rust and glare
- Versatile Applications: Ideal for DIY, hobbyists, and industrial uses in metalworking and inspection tasks
Why We Like This Outside Micrometer

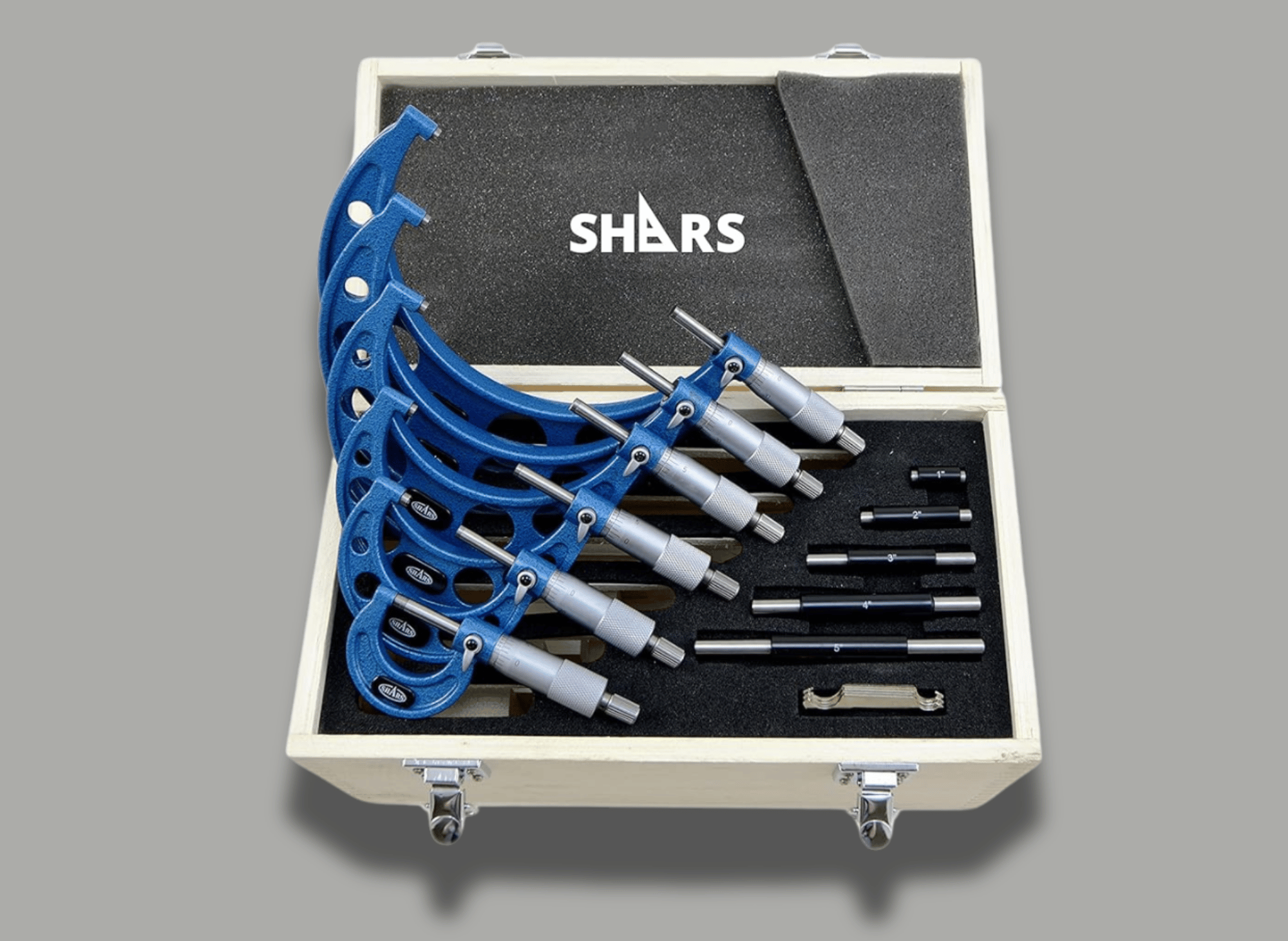

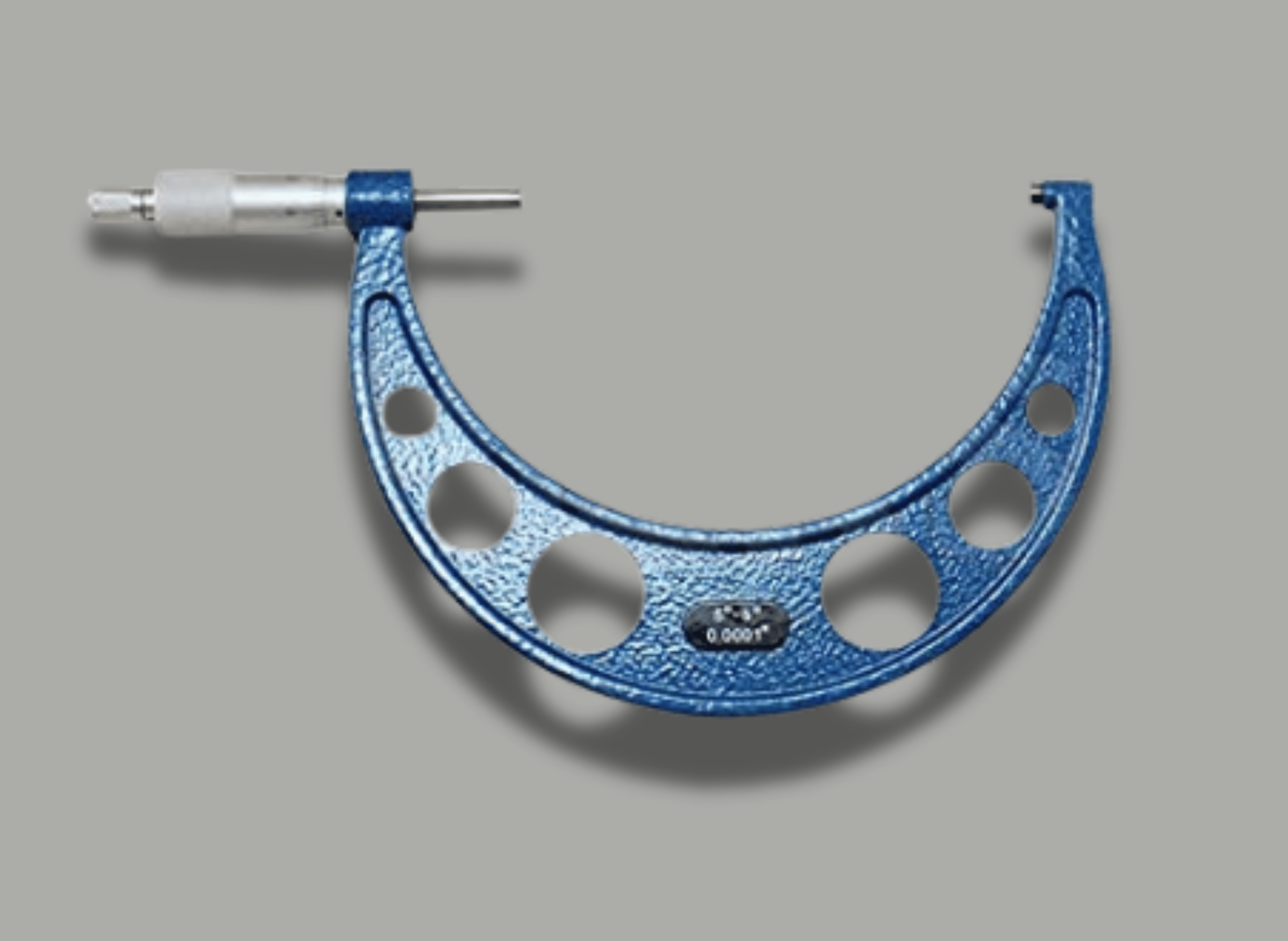

Shars 0-6” Premium Outside Micrometer is the perfect solution for precise and accurate measurements in your mechanical projects. Each set comes with six premium quality micrometers, each with a measuring range of 0-1", 1-2", 2-3", 3-4", 4-5", and 5-6".
Crafted with high-quality materials and featuring a ratchet thimble, these micrometers provide unparalleled precision with a graduation of 0.0001". Whether you are working on small or large-scale projects, our mechanical micrometer set is designed to meet all your measurement needs.
Equipped with the latest technology and expertly crafted, these micrometers offer durability and reliability for accurate readings every time. Upgrade your measurement tools with this 0-6" premium outside micrometer set and achieve exceptional results in all your projects.
Key Features:
- Precision Measurement: Graduation of 0.0001" for accurate readings.
- Comprehensive Range: Six micrometers covering 0-6" measuring range.
- Durability: Crafted with high-quality materials for long-lasting use.
- User-Friendly: Equipped with a ratchet thimble for easy operation.
- Versatile Application: Suitable for various mechanical and engineering projects.
- Professional Quality: Ideal for both hobbyists and professionals seeking reliable tools.
Outside Micrometer FAQs:
What Is an Outside Micrometer, and How Is It Used?
An outside micrometer, also known as a screw gauge, is a precision measuring instrument used to measure the diameter of objects with cylindrical or spherical shapes.
It consists of a calibrated screw with a measuring head on one end and a handle or thimble on the other. The measured object is placed between the measuring faces, and the thimble is rotated to make contact with the object, allowing for an accurate measurement.
How Do You Read Measurements From an Outside Micrometer?
First, to read measurements from an outside micrometer, ensure the measured object is clean and debris-free. Next, place the object between the measuring faces and turn the thimble until it makes contact with the object.
The measurement can be read from the scale on the micrometer barrel, typically marked in millimeters or inches. Some micrometers also have a vernier scale for even more precise readings.
It is crucial to ensure accurate measurements for oversized components by employing specific calibration systems that maintain high standards in length measurement.
What Are Some Typical Applications of Outside Micrometers?
Outside micrometers are commonly used for precision measurements in automotive, manufacturing, engineering, and machining industries. They often measure components such as bearings, shafts, valves, and other cylindrical or spherical objects. Micrometers can also be used in woodworking, metalworking, and automotive repair tasks.
Final Thoughts About Outside Micrometer
In conclusion, we have discussed the importance and usage of outside micrometers in various industries. These precision measuring instruments ensure accurate measurements from manufacturing and engineering to automotive and medical fields.
We have explored the different types of outside micrometers available in the market and their respective features. Additionally, we have discussed how to use an outside micrometer correctly and its maintenance procedures to ensure its longevity. Tap the (cart add) button for your next favorite tool.
