Hydraulic Pressure Test Kit: Reliable Testing Equipment
Ensure safety with a hydraulic pressure test kit. They are designed for accurate readings and durability.
Welcome to Mechanicaddicts. As an Amazon Associate, we earn from qualifying purchases (at no cost to you) from links found within these pages if you choose to buy something.
Hydraulic pressure test kits are tools used to measure and monitor the pressure of hydraulic systems. These kits typically include a gauge, a hose, and various fittings that connect them to different hydraulic system parts.
A hydraulic pressure test kit ensures a system functions correctly and within safe operating parameters. Accurate pressure measurement is crucial for optimal performance and safety in hydraulic machinery. A calibrated pressure gauge ensures precision during testing by accurately connecting to a test point and pressurizing the hydraulic system.
How Mechanicaddicts Chooses the Hydraulic Pressure Test Kit
Looking for the perfect hydraulic pressure test kit? Look no further than Mechanicaddicts. Our expert reviewers have spent countless hours researching the top products to provide the most comprehensive and reliable information. With our in-depth analysis, you can trust that we have chosen only the best options for your needs.
Why We Like This Kit

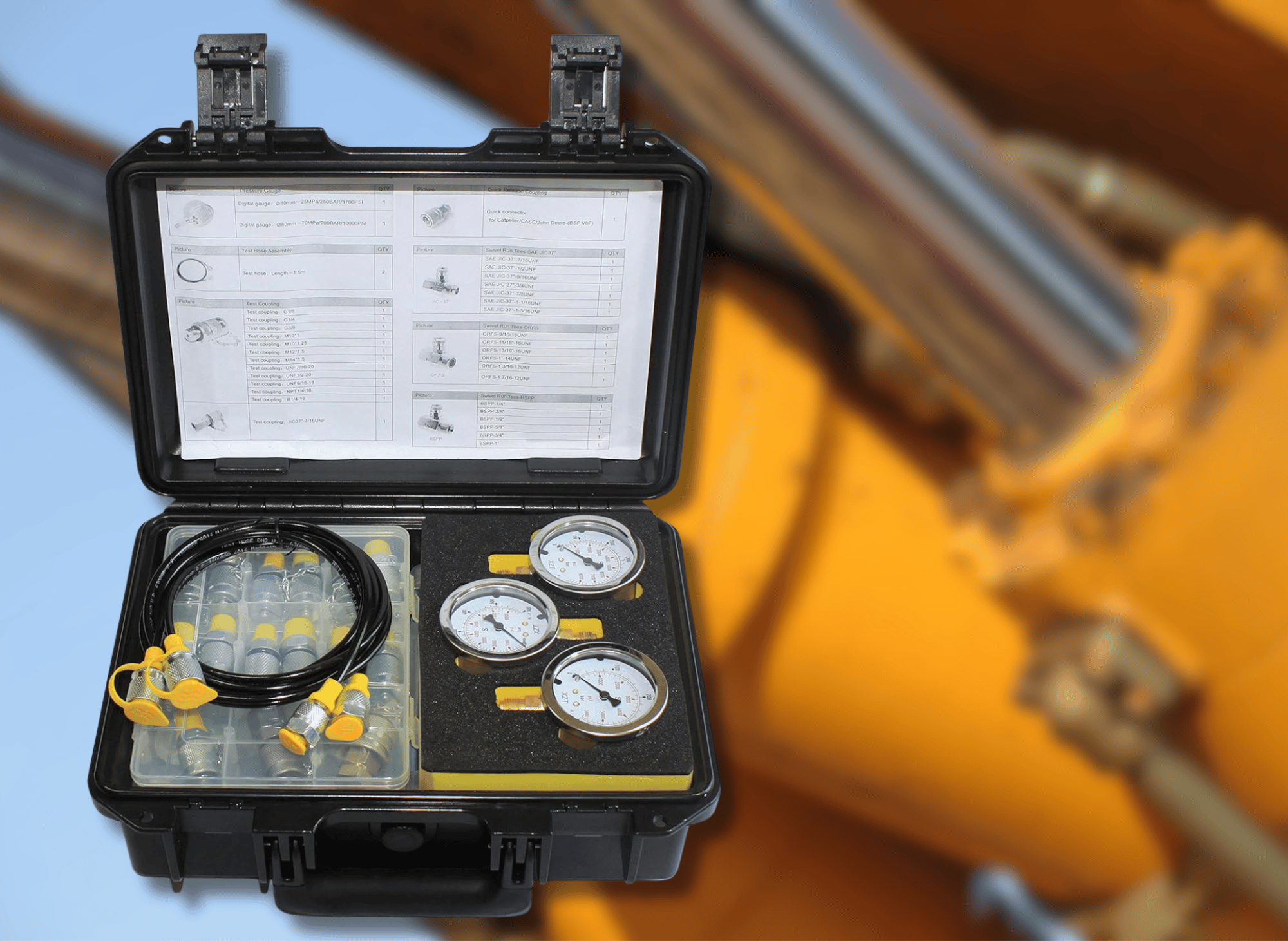

The XZT 60U Hydraulic Pressure Test Coupling Kit is a comprehensive set of equipment designed for accurate and efficient pressure testing in hydraulic systems. This kit includes three high-quality analog gauges with maximum working pressures of 9000PSI, 6000PSI, and 3600PSI, respectively.
Each gauge is marked for easy reading and provides precise measurement readings, ensuring the appropriate hydraulic pressure is set for different systems to maintain proper functionality and safety.
In addition to the gauges, this kit comes with three durable test hoses and thirteen test couplings, making it suitable for use with various excavators and other hydraulic systems. Including hydraulic swivel run tees in BSPP, JIC37, and ORFS versions further enhances the versatility of this kit, allowing for seamless testing in a wide range of systems.
A hydraulic hose connects to the pressure testing machine, and it is crucial to ensure all fittings are secure during the testing process to maintain the hose's integrity and reliability.
Crafted from durable and high-quality metal materials, the XZT 60U Hydraulic Pressure Test Coupling Kit is built to withstand heavy-duty use and deliver reliable performance. It boasts compact dimensions of 11.81 x 7.87 x 5.12 inches and a weight of only 8.5 Kilograms, making it easy to transport and store.
With a maximum working pressure of 9000PSI/600BAR, this test coupling kit easily handles even the most demanding pressure testing tasks. Whether you are a professional hydraulic technician or an avid DIYer, the XZT 60U Hydraulic Pressure Test Coupling Kit is a must-have tool for accurate and efficient hydraulic system maintenance.
Specifications:
- Gauges: Three analog gauges with pressure capacities of 9000PSI, 6000PSI, and 3600PSI
- Test Hoses: Includes three 5FT test hoses designed for durability and flexibility
- Test Couplings: Thirteen types of test couplings for versatile application
- Hydraulic Swivel Run Tees: Provided in BSPP (6 pack), JIC37 (7 pack), and ORFS (6 pack)
- Compatibility: Suitable for most brands of excavators and a variety of hydraulic systems
- Maximum Working Pressure: 9000PSI / 600BAR
- Material: High-quality metal construction for enhanced durability
- Dimensions: 11.81 x 7.87 x 5.12 inches
- Weight: Lightweight design at 8.5 kilograms for easy handling
- Packing Weight: 22 pounds, ensuring safe and secure transportation
Why We Like This Kit

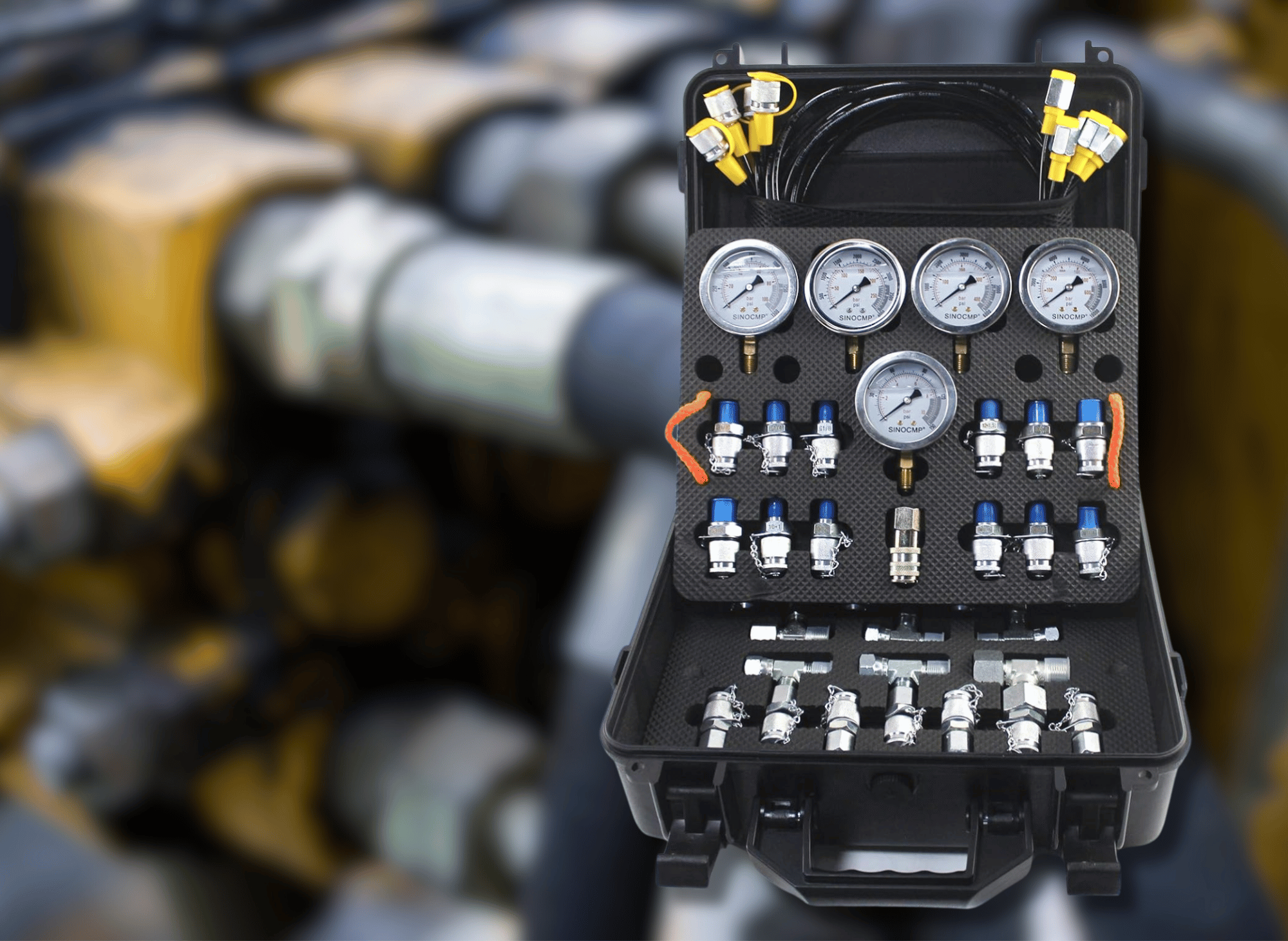

The Sinocmp Hydraulic Pressure Test Kit offers a comprehensive and convenient solution for measuring pressure in various industrial applications. This all-in-one kit includes five test hoses, 13 test couplings, 14 tee connectors, and five hydraulic test gauges, all neatly organized in a durable aluminum storage case.
The kit utilizes a hydraulic pressure testing machine to perform pressure tests on hydraulic systems and hoses, applying pressure using liquids to ensure the integrity of components. This makes it essential for various applications, such as automotive and plumbing systems.
This kit has five gauges with a diameter of 63 mm and different measurement ranges. It provides accurate readings ranging from 1Mpa to 60Mpa. The instrument is filled with working oil to eliminate vibrations and pulsations, ensuring stable pressure measurement over prolonged use. It is crucial to ensure the gauge's full-scale reading is 1.5 to 2 times the required pressure range to optimize performance and accuracy.
The kit also features interchangeable test couplings made of high-strength carbon steel, compatible with various equipment such as pumps, compressors, and hydraulic presses. The 61.5-inch long test hose is designed for longevity and flexibility, allowing easy access to confined spaces for precise pressure readings.
Ideal for industrial applications, this kit can be used in various industries, including pneumatic tools, air compression systems, agricultural machinery, medical equipment, and more. Experience the convenience and reliability of the Sinocmp Hydraulic Pressure Test Kit for all your pressure measurement needs.
Specifications:
- Test Hoses: Five 157cm/61.5-inch hoses designed for flexibility and durability to access confined machine interiors easily.
- Hydraulic Test Gauges: 5 gauges with 63 mm diameter, measuring ranges of 1Mpa, 10Mpa, 25Mpa, 40Mpa, and 60Mpa for accurate readings.
- Test Couplings: There are 13 interchangeable high-strength carbon steel couplings, including R1/4, G1/4, G1/8, G3/8, M101, M101.25, M121.5, M141.5, M16*1.5, UNF7/16, UNF9/16, NPT1/4, and a Quick connector compatible with CASE/John Deere.
- Tee Connectors: 14 robust connectors with various thread sizes such as 3/8 Female, 3/8 Male, M181.5 Female, M181.5 Male, M161.5 Female, M161.5 Male, 7/16 Female, 1/4 Female, 1/4 Male, M14*1.5 Female, 11/16, and 9/16 Female.
- Portable Storage Case: Durable aluminum case for organized storage and easy transportation of all kit components.
- Industrial Applications: Suitable for use in equipment such as pumps, compressors, hydraulic presses, motors, pneumatic tools, air compression systems, agricultural machinery, industrial equipment, and medical devices.
Why We Like This Kit

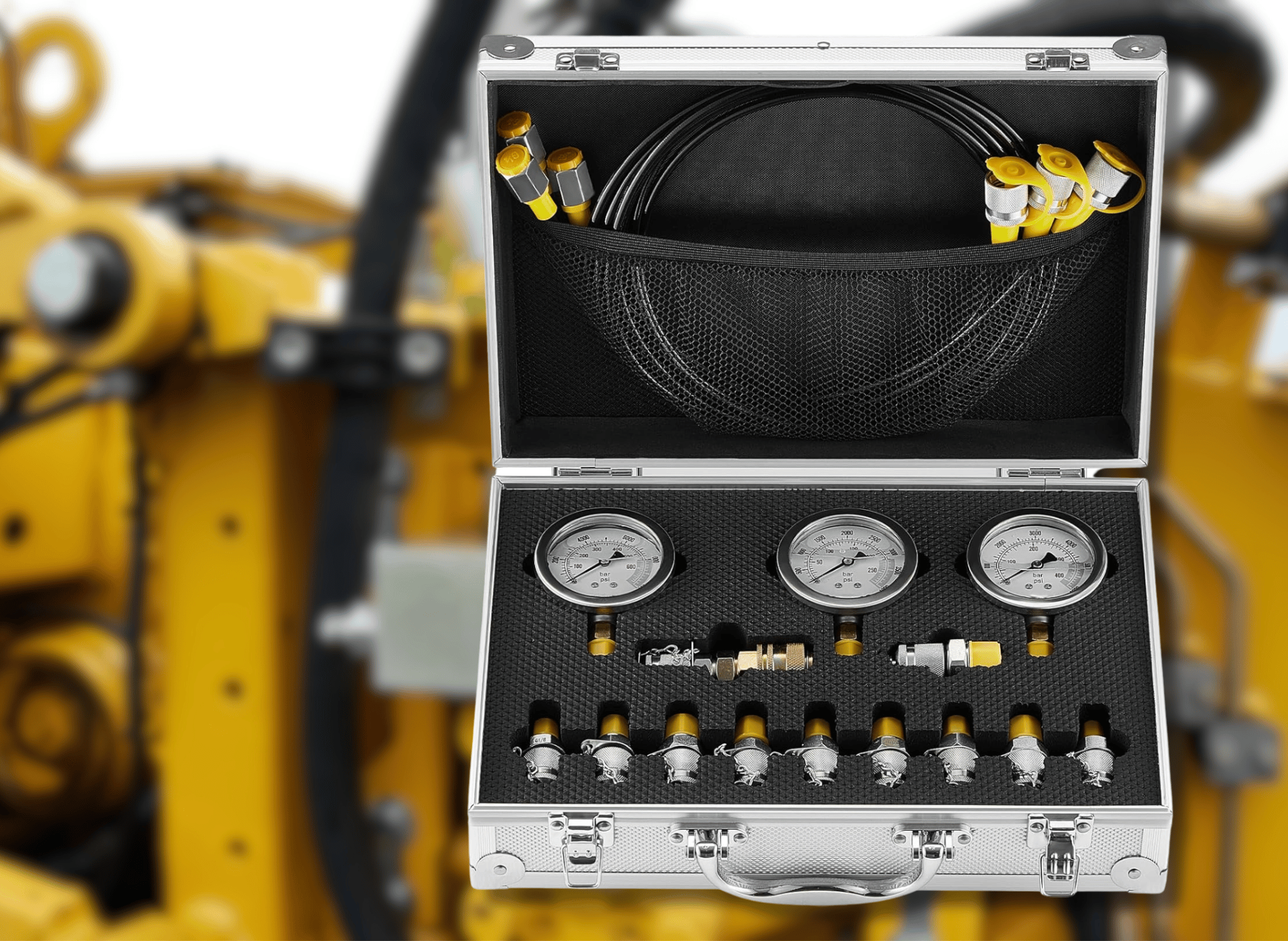

The VEVOR Hydraulic Pressure Test Kit is essential for accurately measuring pressure values in large hydraulic equipment systems. In automotive hydraulic systems, the hydraulic pressure requirements can vary based on the type of system in use, highlighting the significance of understanding these distinctions in automotive applications.
This kit is crafted from durable materials such as stainless steel and aluminum and is designed to withstand high temperatures and corrosive environments. Its three test gauges offer various pressure options, catering to various hydraulic equipment with different interfaces.
With 11 test couplings included and protective plastic film on the thread joints, this excavator pressure gauge kit can be used with multiple excavator models without the risk of damage.
The kit also comes with three 5.2 ft/1.6 m hoses for easy placement within machinery and a compact carrying case made of aluminum alloy and density board for convenient storage and transportation. The hoses are also subjected to a proof pressure test to verify their integrity and reliability, ensuring they can withstand potential failures.
Suitable for various industries such as construction, shipping, mining, and maintenance, the VEVOR Hydraulic Pressure Test Kit is the go-to choice for accurate pressure testing in diverse environments. Trust in its strict quality control to provide zeroed gauges and dual scale units (PSI or Bar) for quick readings
Specifications:
- Brand: VEVOR
- Material: Stainless Steel, Aluminum
- Package Dimensions: 12.6 x 9.45 x 3.54 inches
- Weight: 6.39 Pounds
- Pressure Range Options: 0-3500 PSI / 250 Bar0-5800 PSI / 400 Bar0-8600 PSI / 600 Bar
- Test Couplings Included: G1/8, G1/4, G3/8R1/4, M10/1, M10/1.25M14/1.5, M1/8UNF7/16-20,UNF9/16-18
- Hose Length: Three 5.2 ft / 1.6 m hoses
- Carrying Case: Aluminum alloy and density board
- Quality Control: Zeroed gauges and dual scale units (PSI or Bar)
Frequently Asked Questions About Hydraulic Pressure Test Kits
What Is a Hydraulic Pressure Test Kit?
A hydraulic pressure test kit is a set of tools and equipment used to measure and test the pressure of hydraulic systems in various applications, such as in construction, manufacturing, and transportation industries.
It ensures optimal performance and safety for hydraulic machinery by providing accurate pressure measurement and diagnostics. When selecting pressure gauges for hydraulic systems, it is essential to ensure that the gauge's full-scale reading is 1.5 to 2 times the operating pressure to allow for accurate measurements during testing.
How Does a Hydraulic Pressure Test Kit Work?
The basic working principle of a hydraulic pressure test kit involves using a gauge or sensor to measure the force or pressure exerted by the fluid in a hydraulic system.
The appropriate hydraulic pressure depends on the specific system and application, requiring consideration of various factors to determine the correct pressure for effective operation and testing.
A test point, typically M16x2, connects pressure gauges and transducers to hydraulic systems, allowing for quick and reliable pressure readings during various testing processes in hydraulic applications. The readings are then displayed digitally or analog for straightforward interpretation.
What Are the Components of a Typical Hydraulic Pressure Test Kit?
A standard hydraulic pressure test kit, offering accurate pressure measurement, usually includes gauges, adapters, hoses, and fittings to connect to different hydraulic systems. Some kits may also include a hand pump or electric pump for generating pressure, providing precise diagnostics for hydraulic machinery.
Final Thoughts About Hydraulic Pressure Test Kit
In conclusion, a hydraulic pressure test kit is essential for any hydraulics technician or engineer. It offers accurate pressure measurement, which is crucial for precise diagnostics, optimal performance, and safety.
This blog post has covered all the critical aspects of using a hydraulic pressure test kit, from the various types of gauges available to the proper procedure for conducting a pressure test. Following these guidelines ensures that your equipment performs at its best and avoids potential hazards.
Furthermore, investing in a high-quality pressure test kit will save you time and money and give you peace of mind, as you will know that your hydraulic system is functioning as it should.
Thank you for reading!
