A Dial Bore Gage for Accurate Cylinder Measurements
Discover precision dial bore gages for accurate measurements and calibration and enhance your measurement accuracy today!
Welcome to Mechanicaddicts. As an Amazon Associate, we earn from qualifying purchases (at no cost to you) from links found within these pages if you choose to buy something.
Dial bore gages, also known as bore gauges, are precision measuring tools used to measure the inside diameter of holes. They can replace traditional measuring tools like micrometers, showcasing their versatility in quality control and engine-building applications. They consist of a spindle (or anvil) that contacts the hole’s walls and a dial or digital indicator that displays the measurement.
How Mechanicaddicts Chooses the Dial Bore Gage
Are you in the market for a Dial Bore Gage but unsure which one to invest in? Look no further, as our team at Mechanicaddicts has carefully reviewed and selected the top options available. Dial bore gages come in various lengths to accommodate different measuring needs. We understand that finding the right tool can be overwhelming, so we have taken the time to research and test various products to make your decision easier.
Why We Like This Dial Bore Gauge

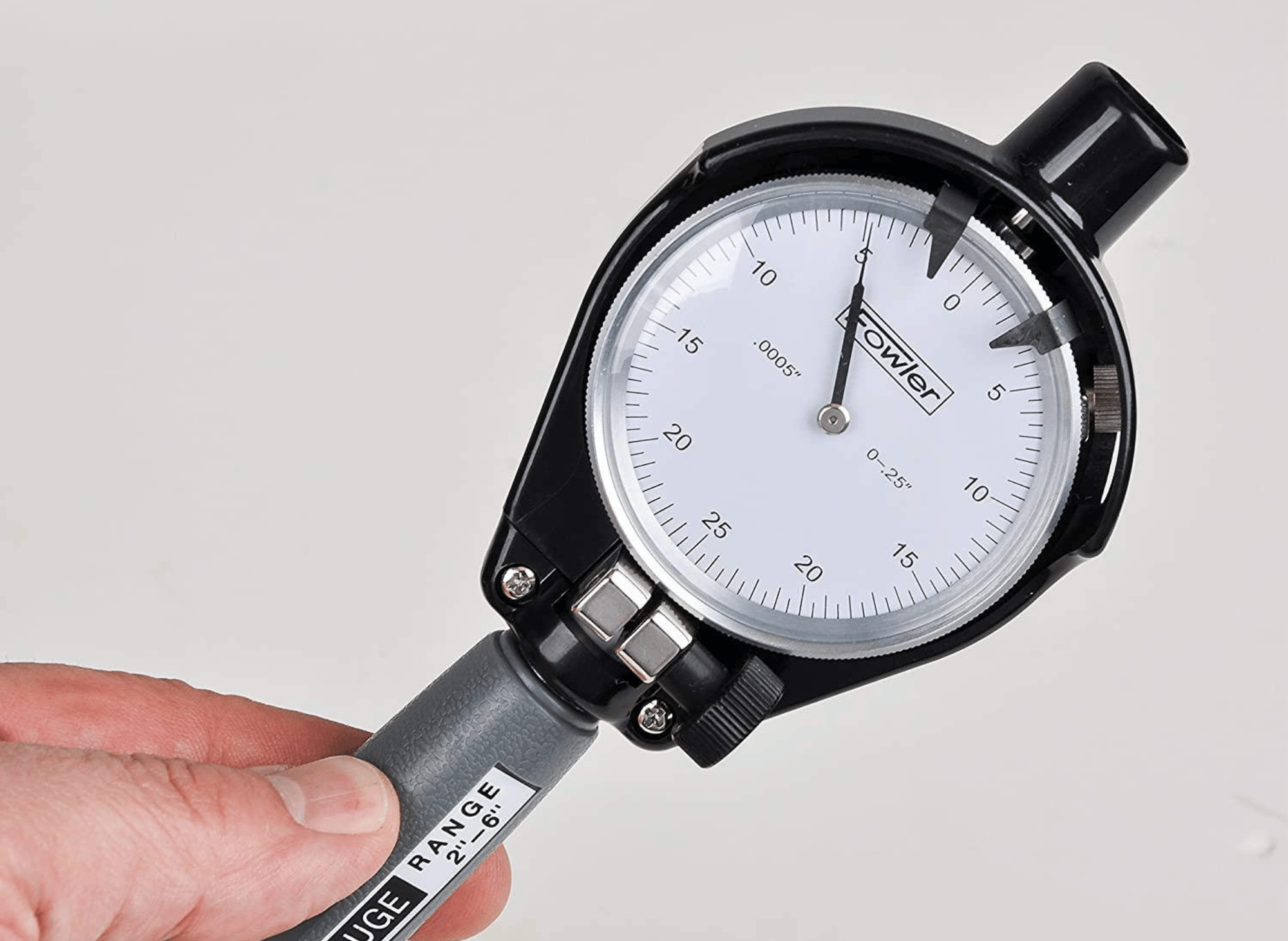

The Fowler 52-646-300-0 Cylinder Dial Bore Gage is designed for accurate and precise measurements. With a dial indicator featuring graduations of 0.0005” and a measuring depth of 9.5”, this bore gauge is perfect for detecting geometry abnormalities and measuring hole diameters in the 2 to 6-inch range.
The two-point contact system with carbide-tipped anvil contact points provides extended wear and improved abrasion resistance, ensuring longevity and durability in your measurement tools. And with its self-centering capability, you can trust in fast and accurate results every time.

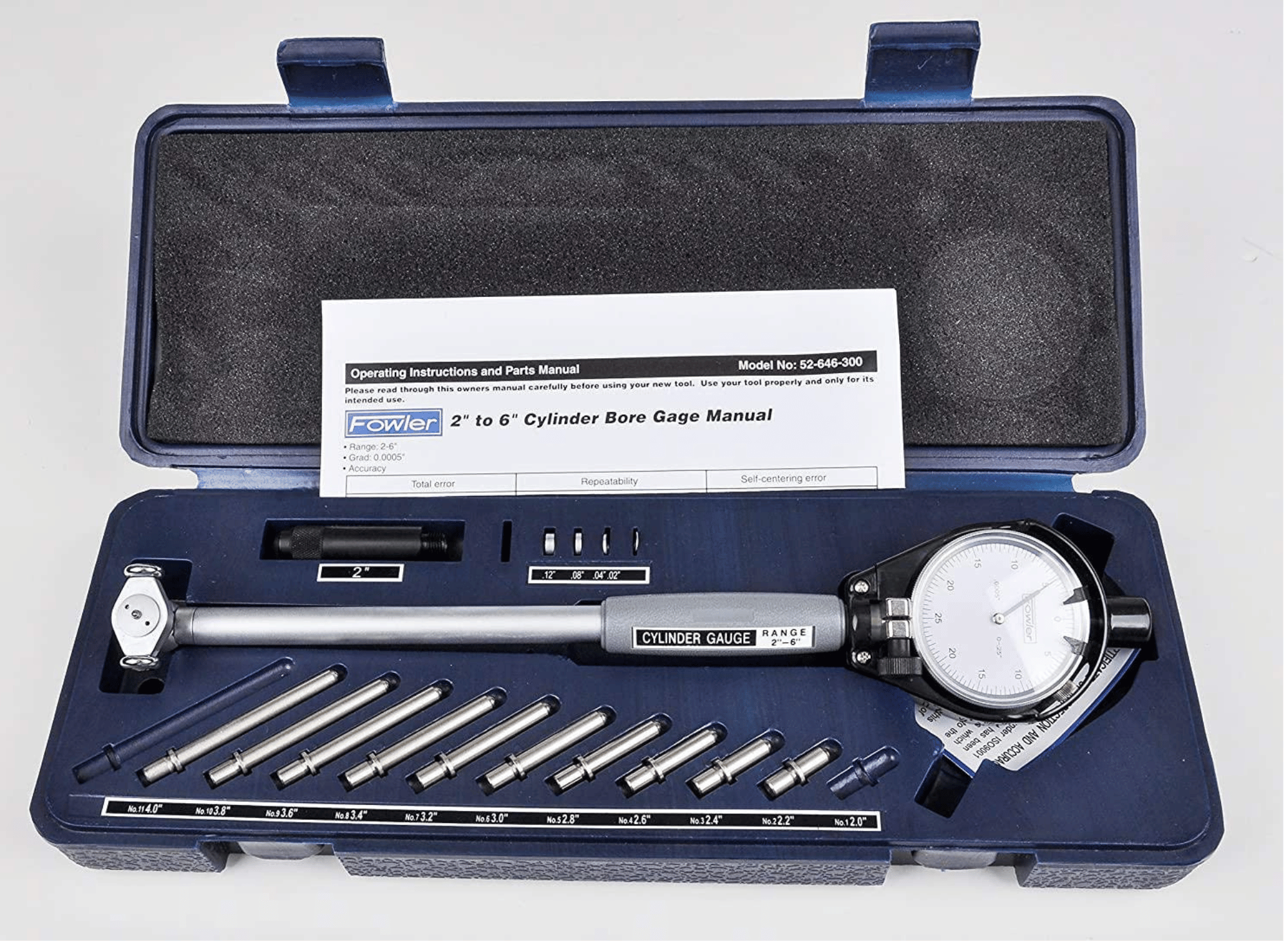

This bore gage also boasts user-friendly features, including an insulated grip for easier handling and adjustability to suit your needs. It even comes with a protective fitted case and 2-inch extension, making it a complete set ready for use. Additionally, setting fixtures can be used with the gauge to form a complete measurement system, streamlining the gauging process and reducing the reliance on other measuring tools.
Key Benefits:
- Precision Accuracy: The Fowler 52-646-300-0 features a dial indicator with precise graduations of 0.0005”, ensuring highly accurate measurements for professional applications.
- Durable Design: Equipped with carbide-tipped anvil contact points, this bore gage is built for extended wear and robust performance, even in demanding environments.
- Versatile Measurement Range: This gage measures hole diameters from 2 to 6 inches, making it ideal for various machining and inspection tasks.
- Enhanced Usability: The self-centering mechanism allows for quick adjustments, while the insulated grip promotes comfortable handling.
- Complete Set: The included protective fitted case and 2-inch extension enhance the tool's functionality and portability, making it convenient for on-the-go measurements.
Why We Like This Dial Bore Gauge

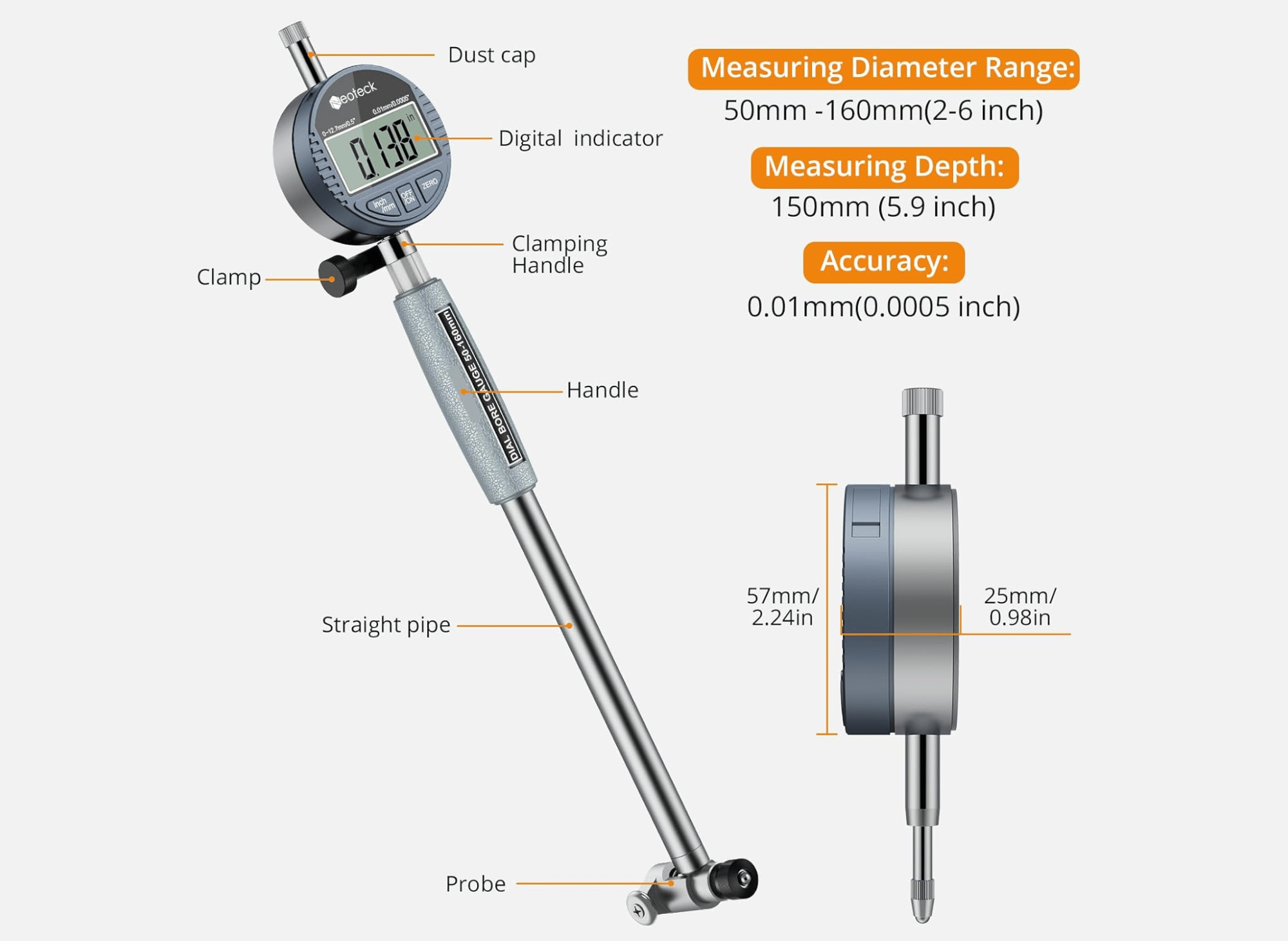

The Neoteck Bore Gage Set is the ultimate solution for precise and accurate measurements of inner hole sizes. This professional set comes equipped with a durable all-metal clamping device and a digital indicator with a diameter range of 0 ~ 12.7 MM (0 ~ 0.5 inches) and a resolution of 0.01 MM (0.0005 inches). Its self-centering design allows for fast and efficient measurements, while the insulated grip ensures comfort and safety during use.
Designed for versatility, this bore gage set has a measuring diameter range of 50 mm-160 mm (2-6 inches) and can measure up to a depth of 150mm (5.9 inches). It is advantageous for taking measurements directly on large workpieces, eliminating the need to move them to a separate gaging station. Its two-point contact system detects geometric diameter measurement problems such as ovality and taper, making it the ideal tool for various processing techniques.

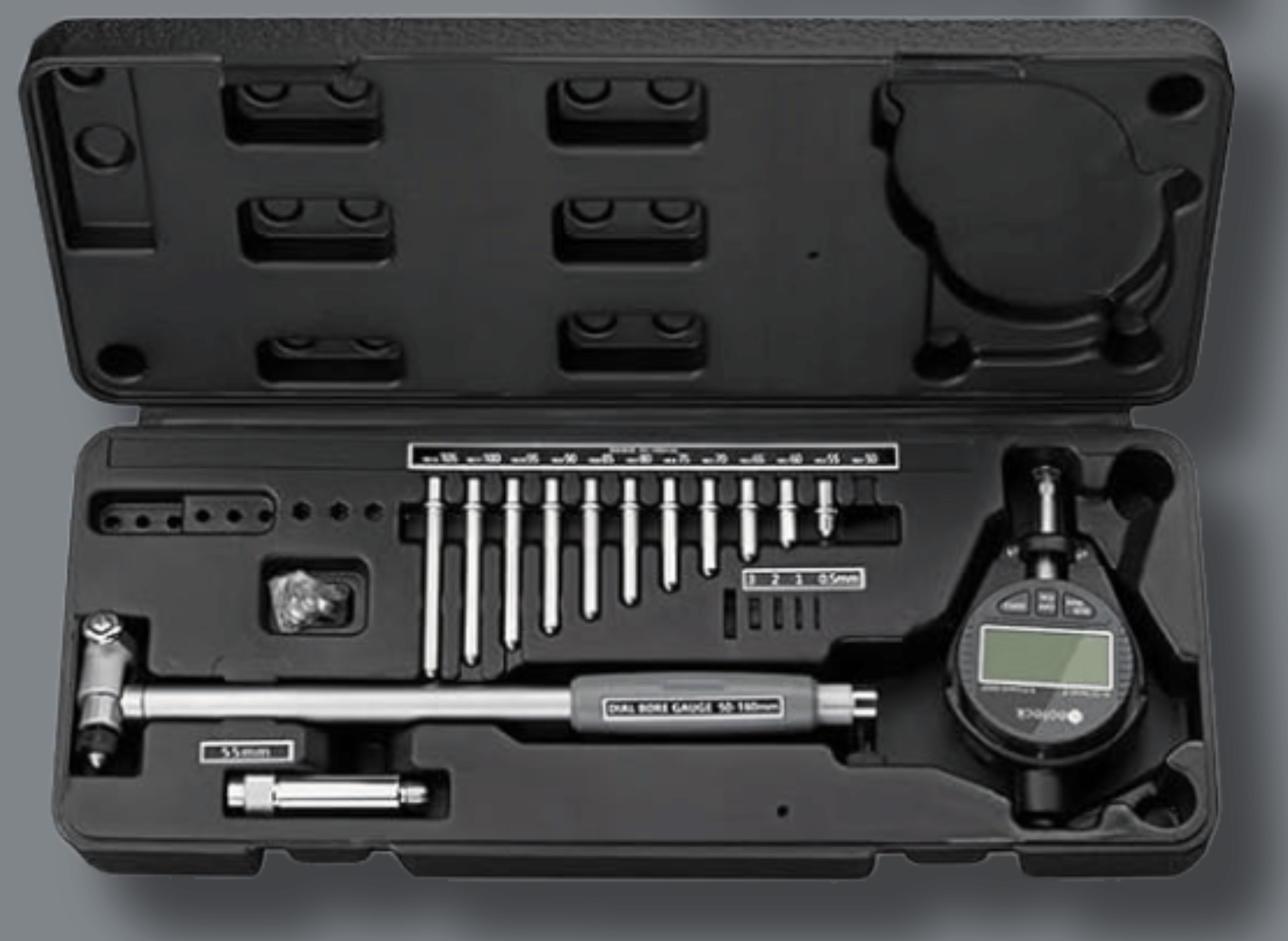

The Neoteck Bore Gage Set is built to last. Its sealed gauge head, aluminum housing, and glass mirror cover are dustproof and wear-resistant. The set also includes a storage case for convenient organization and transportation. With 12 gauge specifications ranging from 50 mm to 105 mm, it is perfect for deep engine cylinder measurement.
Key Benefits:
- Precision Measurement: This bore gage set is ideal for professional applications, as it is equipped with a digital indicator that allows for highly accurate measurements.
- Versatile: This set's wide range of measuring capabilities makes it suitable for various machining and inspection tasks.
- Durable Design: The all-metal clamping device and sealed gauge head ensure long-lasting performance in demanding environments.
- Convenient Storage and Transport: The included storage case allows for easy organization and transportation of the 12 gauge specifications.
- Optimal for Deep Cylinders Measurement: With a depth capacity of 150mm (5.9 inches), this bore gauge set is perfect for accurately measuring deep engine cylinders.
Why We Like This Dial Bore Gauge

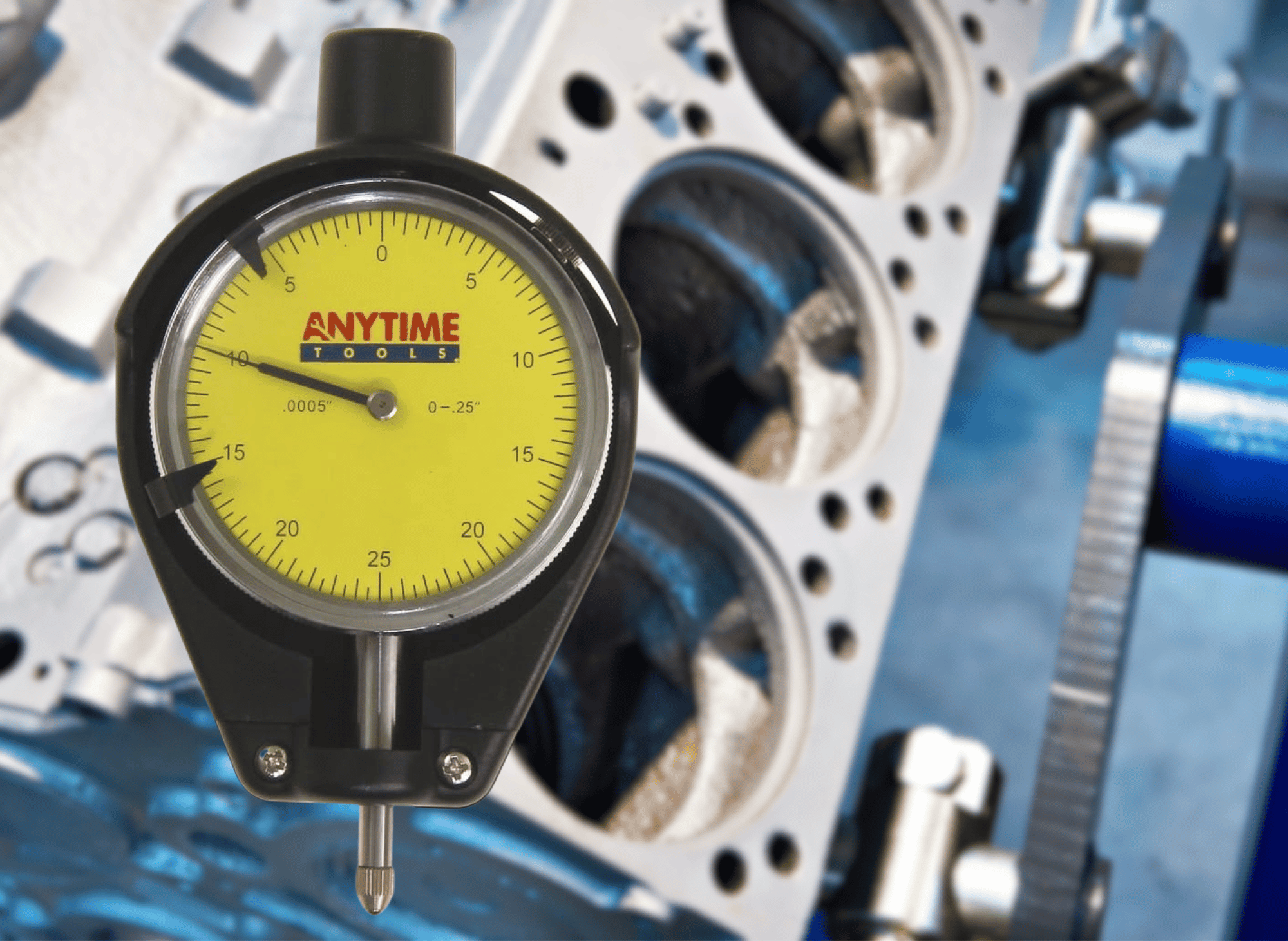

The Anytime Tools Dial Bore Gauge is a top-of-the-line precision measuring tool designed for accuracy and ease of use. This gauge can replace traditional measuring tools like ring gauges and micrometers. With a range of 0.7” to 6” diameter, this gauge can measure bores up to 10 inches deep, making it suitable for various applications.
Featuring crisp precision graduations and an accuracy of 0.0005”, this gauge ensures precise and reliable measurements every time. The carbide tip on the measuring plunger provides durability and longevity, while the dial indicator contains jeweled bearings for smooth and accurate readings.

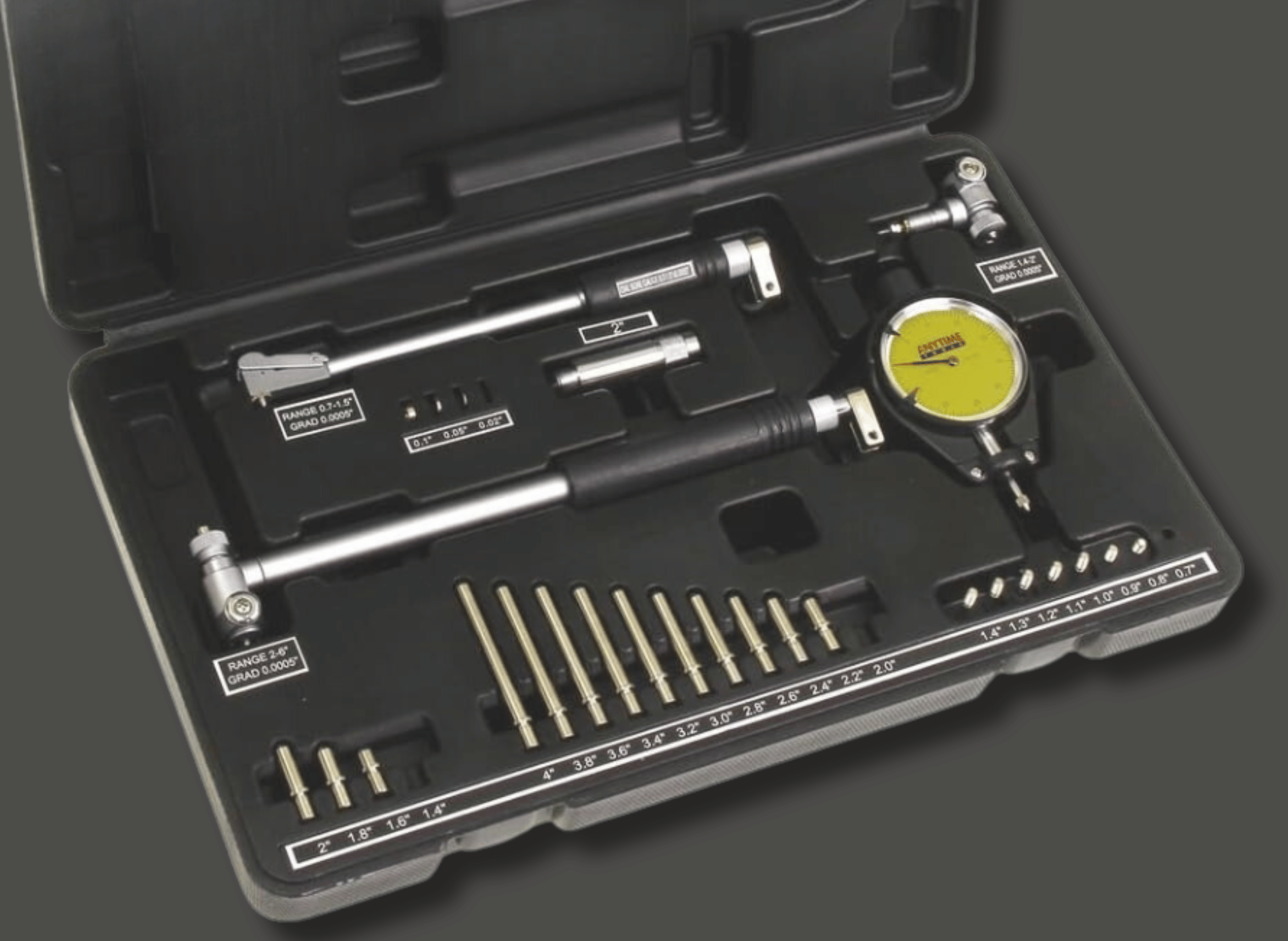

Designed with convenience in mind, this gauge comes with an ABS storage case for easy transportation and protection when not in use. Whether you’re a professional mechanic, engineer, or DIY enthusiast, the Anytime Tools Dial Bore Gauge is a must-have tool for your precision measuring needs. Trust in its super precision and deep measuring capabilities to take your projects to the next level of accuracy and perfection.
Key Benefits:
- Exceptional Accuracy: With a precision of 0.0005”, the Dial Bore Gauge guarantees reliable measurements for professional applications.
- Versatile Range: Capable of measuring diameters from 0.7” to 6” and depths up to 10”, making it suitable for various tasks.
- Durable Construction: The carbide tip on the measuring plunger enhances the tool’s longevity and resistance to wear.
- Smooth Operation: The dial indicator’s jeweled bearings provide seamless and accurate readings, improving user experience.
- Convenient Storage: This tool comes with a protective ABS storage case, ensuring it is easily transportable and safeguarded when not in use.
Dial Bore Gage FAQs:
What is a Dial Bore Gage, and How Does it Work?
A Dial Bore Gauge is a precision measuring tool used to accurately measure the inside diameter of a hole, cylinder, or other cylindrical surfaces. It works by having two anvils that are placed inside the bore of the object being measured. The anvils are then expanded using a dial or digital indicator, providing an accurate measurement.
What Are the Advantages of Using a Dial Bore Gage?
One of the main advantages of using a Dial Bore Gage is its high accuracy and precision. Using fixtures with dial bore gages can streamline the measurement process by eliminating the need for alternative measuring tools like ring gages or micrometers.
It can provide measurements within microns, making it ideal for industries that require precise measurements. Additionally, it is a versatile tool that can be used for different types of bores and can also measure taper and out-of-roundness. Whether rebuilding a stock or high-performance engine, this is a necessary workpiece!
How Do You Properly Use a Dial Bore Gage?
To properly use a Dial Bore Gage, you should ensure that the anvils are clean and free from debris or oil. Next, the gage is inserted into the bore to be measured, and the anvils are adjusted until they lightly touch the walls of the bore.
Then, take a reading using the dial or digital indicator by zeroing it at a known measurement point. Finally, rotate the gage within the bore to get multiple readings and calculate an average for a more accurate measurement.
What Are the Different Types of Dial Bore Gages?
There are three main types of Dial Bore Gages: mechanical, electronic, and digital. Mechanical gages use a dial indicator to display the measurement, while electronic and digital gages provide a direct numerical reading. Electronic gages also have additional features like data logging and wireless connectivity for more effortless data transfer and analysis.
Does Sunnen Tools make a Bore Gauge?
Yes, Sunnen Tools offers a wide range of bore gages for various applications. Their bore gage selection includes mechanical, electronic, and digital options with different ranges and features to suit specific needs.
As a trusted manufacturer in the precision measuring industry, Sunnen Tools' bore gages are known for their accuracy and durability.
Final Thoughts About Dial Bore Gage
As we come to the end of this blog post about Dial Bore Gages, it is clear that these precision measuring tools are essential for any machinist or engineer looking to measure the diameter and roundness of a bore accurately. We have discussed the various types of Dial Bore Gages, their features, and how they compare to other measuring instruments.
One important aspect that stands out about Dial Bore Gages is their versatility. They can be used for inside and outside diameter measurements, making them valuable in any workshop or manufacturing setting. Additionally, their compact size and easy-to-read dial make them convenient and user-friendly.
